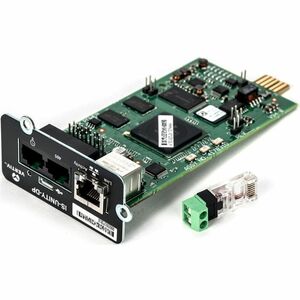

Vertiv Liebert IntelliSlot Unity-DP Network Card - Remote Monitoring | Dual Protocol

Unlock proactive, centralized control of your Liebert power and cooling assets with the Vertiv Liebert IntelliSlot Unity-DP Network Card. This dual protocol (DP) card is designed to slide into an IntelliSlot in Vertiv Unity equipment, delivering secure web access and flexible building management system (BMS) integration. With support for two of the industry-standard protocols—SNMP, BACnet, Modbus, and YDN23—the Unity-DP Network Card makes it easier than ever to monitor, alert, and optimize data-center infrastructure from a single pane of glass. Whether you manage a single rack or a multi-site campus, this card empowers operators, facilities teams, and data-center managers to stay ahead of faults, maintain uptime, and streamline operations.

• Remote monitoring at your fingertips: The Unity-DP Network Card provides web-based access to critical Liebert power and cooling equipment, letting you view real-time health, performance metrics, temperature and humidity conditions, and fault history from any workstation or mobile device.
• Flexible dual-protocol integration: With DP capability, you can configure two of the supported third-party protocols—SNMP, BACnet, Modbus, or YDN23—to fit seamlessly into your existing BMS or Data Center Infrastructure Management (DCIM) software, reducing integration complexity and software silos.
• IntelliSlot plug-and-play setup: Engineered for Liebert Unity systems, the Unity-DP card slides into an available IntelliSlot, activates after network configuration, and begins reporting data without requiring complex server-side agents or gateways.
• Enhanced reliability and proactive maintenance: The card supports event logging, alerting, and trend data that help operators identify abnormal conditions early, mitigate risks, and plan maintenance around actual device wear and performance trends.
• Secure, scalable operations for growing data centers: Built for enterprise environments, the Unity-DP card supports robust access controls and scalable monitoring workflows, enabling teams to manage multiple devices and sites with confidence.

Technical Details of Vertiv Liebert IntelliSlot Unity-DP Network Card

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install Vertiv Liebert Unity-DP Network Card

• Power down the Liebert Unity equipment and disconnect power sources as required by your facility’s safety procedures. Ground yourself to prevent electrostatic discharge before handling the card.
• Open the equipment enclosure to locate an available IntelliSlot. Remove the slot cover if necessary and confirm there is adequate clearance for the Unity-DP card.
• Gently align the Unity-DP card with the IntelliSlot and press firmly until the card seats with a secure click. Make sure the card is fully engaged and the edge connector is seated cleanly.
• Secure the card with the appropriate mounting screw, then connect a network Ethernet cable to a configured switch or router in your network topology. Restore power to the unit.
• Access the device using its default IP address or a DHCP-assigned address, then open the web UI in a browser. Follow the initial setup wizard to enable the DP interfaces, configure IP settings, and register the card with your monitoring system.
• Choose two of the supported protocols (SNMP, BACnet, Modbus, YDN23), assign appropriate community strings or device identifiers, and verify data flow to your BMS/DCIM. Test alarms and trend reporting to confirm correct operation.

Frequently asked questions

• Q: What is the Vertiv Unity-DP Network Card used for?

  A: It provides remote access to Liebert Unity power and cooling equipment and enables two third-party protocols for seamless integration with BMS or DCIM systems.

• Q: Which protocols can I configure with the Unity-DP card?

  A: You can configure two protocols from SNMP, BACnet, Modbus, and YDN23, allowing flexible integration with your existing building management or data-center monitoring setup.

• Q: Is the Unity-DP card easy to install in existing Liebert Unity equipment?

  A: Yes. The card is designed for the IntelliSlot architecture, delivering a straightforward, plug-and-play installation that seats securely and begins reporting data after network configuration.

• Q: Can the DP protocol selection be changed after installation?

  A: Yes. The dual-protocol configuration can be updated via the web UI or local console, allowing you to adjust integration as your BMS/DCIM needs evolve.

• Q: What operational benefits does remote monitoring provide?

  A: Remote monitoring enables proactive fault detection, faster troubleshooting, centralized visibility across devices and sites, and the ability to receive timely alerts that help minimize downtime and optimize maintenance planning.
