Description

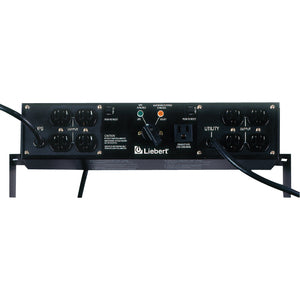

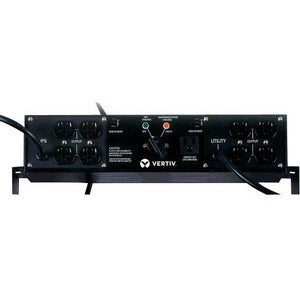

Vertiv Liebert MicroPOD External Maintenance Bypass Switch
The Vertiv Liebert MP2-210K Micropod External Maintenance Bypass Switch is engineered to keep critical systems powered and protected while maintenance is performed on the UPS. This trusted solution provides a safe, manual pathway to transfer critical loads from the UPS to utility power through a dedicated maintenance bypass, ensuring scheduled maintenance or UPS replacement can occur without interrupting essential operations. Designed for data centers, healthcare facilities, and other mission-critical environments, the MicroPOD bypass switch delivers reliability, safety, and operational flexibility in a compact, modular form factor. By enabling seamless handoff between power sources, it minimizes downtime, reduces risk, and helps facilities meet strict availability targets without sacrificing protection or performance.
- Uninterrupted maintenance windows for critical loads: The maintenance bypass switch allows you to manually route power from the UPS to the utility supply, so technicians can service or replace the UPS without discontinuing power to essential equipment. This capability preserves continuity for servers, networking gear, and critical infrastructure during planned outages or upgrades, supporting stringent uptime requirements.
- Flexible, modular integration with Liebert MicroPOD systems: Specifically designed to pair with the MP2-210K Micropod, this switch integrates into the Liebert MicroPOD ecosystem, delivering a streamlined, centralized path for power distribution. The combination supports organized, scalable deployments and simplifies future expansions while maintaining a compact footprint.
- Safe, controlled power transfer: The switch provides a well-defined, interlocked bypass path that minimizes the risk of backfeed and electrical faults. By clearly delineating the UPS and utility paths, technicians can perform maintenance with confidence, knowing that the critical load remains protected and isolated from interruptions caused by UPS service work.
- Enhanced visibility and reliability for mission-critical environments: With status indicators and robust mechanical design, the MicroPOD external maintenance bypass switch helps facility teams monitor the power path, verify safe transfer states, and respond quickly to any anomalies. Its rugged construction is suited for data centers, healthcare facilities, industrial floors, and other environments where uptime is non-negotiable.
- Industry-leading safety and compatibility: Built to align with industry safety practices and to complement the Liebert MP2-210K family, this switch contributes to a resilient power architecture. It supports compliant operation during maintenance windows, with wiring, labeling, and interlocks that meet demanding standards for critical-load protection.
Technical Details of Vertiv Liebert MicroPOD External Maintenance Bypass Switch
- Model and scope: Vertiv Liebert MP2-210K Micropod External Maintenance Bypass Switch designed for integration with the MP2-210K MicroPOD family and compatible UPS installations used in critical-load environments.
- Compatibility: Engineered to work within Liebert MicroPOD MP2-210K configurations, providing a dedicated bypass path and Power Output Distribution (POD) switching to support safe maintenance and rapid reconfiguration of power routes.
- Safety features: Includes interlock mechanisms and status indicators to reduce the likelihood of backfeed during transitions and to provide clear, at-a-glance understanding of the current power path state for operators and service personnel.
- Construction and durability: Built for continuous operation in data-center environments, with rugged mechanical interfaces intended for frequent maintenance windows and long service life, while maintaining consistent electrical performance.
- Notes on specifications: Detailed electrical ratings, dimensions, and wiring configurations are referenced from the product specifications in the Synex catalog (UPC/SKU). For exact values, consult the official specifications corresponding to the installed UPC or SKU in the Synex catalog.
How to Install Vertiv Liebert MicroPOD External Maintenance Bypass Switch
- Prepare the maintenance plan: Before any work, review facility maintenance procedures, coordinate with operators, and establish a dedicated maintenance window. Verify that all personnel hold appropriate lockout/tagout credentials and wear required personal protective equipment. Ensure the utility feed and UPS are capable of safe bypass operation according to the manufacturer’s guidelines.
- Power-down sequencing and isolation: Following site procedures, de-energize nonessential equipment and isolate the MP2-210K Micropod from the live UPS output path. Confirm that the load is safely re-routed to the utility supply through the maintenance bypass path and that no backfeed conditions exist before opening or closing any switches.
- Engage the bypass path: Move the maintenance bypass switch to the bypass or maintenance position as specified by the installation manual. This action routes the critical load through the utility path while the UPS circuitry remains isolated for safe servicing.
- Verify power transfer and stability: With the bypass engaged, verify that critical equipment remains powered, check voltage and waveform stability, and observe the status indicators on both the Micropod and bypass switch. Confirm that there are no error alarms and that the load is receiving clean utility power.
- Complete maintenance and restore the system: After completing UPS maintenance or replacement, return the switch to the UPS path following the manufacturer’s recommended sequence. Re-energize the Micropod, monitor for normal operation, and perform a final functional test to validate full system readiness before returning to standard operation.
Frequently asked questions
-
Q: What is a maintenance bypass switch?
A: A maintenance bypass switch provides a manual, controlled route to transfer critical loads from the UPS to the utility power source. This allows maintenance, testing, or UPS replacement to proceed without interrupting power to essential equipment, thereby preserving uptime and reducing risk during service windows. -
Q: Is the Vertiv Liebert MicroPOD External Maintenance Bypass Switch compatible with MP2-210K Micropod?
A: Yes. The switch is designed to integrate with the Liebert MP2-210K Micropod ecosystem, delivering a cohesive bypass and distribution path that simplifies maintenance workflows in compatible installations. -
Q: Can this switch prevent downtime during UPS maintenance?
A: When used as part of a planned maintenance strategy, the bypass switch enables uninterrupted critical-load power by transferring load to utility power during UPS service or replacement, thereby minimizing downtime and preserving service levels. -
Q: What environments benefit most from the MicroPOD maintenance bypass?
A: Data centers, healthcare facilities, manufacturing floors, and any operation requiring high availability and rapid maintenance access to keep essential systems online without disruption. -
Q: What installation considerations should I know?
A: Installation should be performed by qualified electrical professionals in accordance with manufacturer instructions and local electrical codes. Lockout/tagout procedures, wiring integrity, labeling, and testing of the bypass path are essential to ensure ongoing reliability and safety during maintenance cycles.
