Vertiv Liebert POD PD2 - (4) NEMA 5-30R| (2) 5-20R| (2) L5-20R|UPS Maintenance

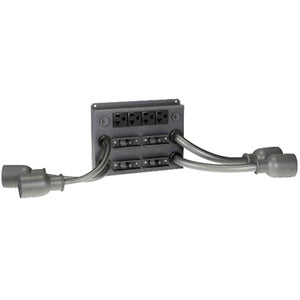

The Vertiv Liebert POD PD2-105 is a purpose-built Power Output Distribution (POD) unit designed to work in concert with Liebert GXT4 8–10 kVA UPS systems. This compact, rack-mountable module delivers a versatile outlet matrix alongside a built-in maintenance bypass, enabling in-place UPS maintenance and replacement without disrupting power to connected loads. It’s engineered for data centers, server rooms, and edge environments where uptime is non-negotiable and flexibility matters. With a carefully arranged mix of NEMA outlets—four NEMA 5-30R, two NEMA 5-20R, and two NEMA L5-20R locking outlets—the POD PD2 supports a wide range of IT and network devices, power strips, and critical peripherals, all while keeping cords organized and compliant with safety standards. This POD unit integrates into the Liebert ecosystem to deliver reliable, scalable power distribution that aligns with modern IT infrastructures and high-availability demands.

• Seamless UPS maintenance: Built-in maintenance bypass enables maintenance or replacement of the GXT4 UPS without disconnecting connected loads, ensuring continuous service for critical IT equipment. This feature minimizes planned downtime and simplifies service workflows for data centers that require near-zero interruption during UPS swaps or repairs.
• Flexible outlet configuration: The module provides four NEMA 5-30R outlets, two NEMA 5-20R outlets, and two NEMA L5-20R locking outlets, supporting a wide range of devices and cable configurations in data centers and server rooms. This mix accommodates servers, storage gear, network switches, and ancillary equipment with both straight and locking receptacles for secure connections.
• Rugged, rack-mount ready design: Built to withstand demanding environments, the POD PD2 mounts securely in standard 19-inch racks, with a compact footprint that optimizes space in dense deployments. Its sturdy construction helps reduce installation headaches and keeps critical connections neatly organized in high-density racks.
• Hot-swappable integration with Liebert ecosystem: Designed to work with Liebert GXT4 8–10 kVA UPS units, enabling straightforward upgrades and scalable power distribution as rack loads grow. The POD PD2 complements other Liebert components to deliver a cohesive, reliable power and cooling strategy for modern IT deployments.
• Safety, reliability, and compliance: Each output is protected by appropriate overcurrent protection and is designed for reliable operation under load, with clear labeling and easy maintenance workflows to minimize downtime. The unit adheres to industry standards for power distribution in data centers, contributing to a safer and more manageable environment for IT staff.

Technical Details of Vertiv Liebert POD PD2

• Receptacle configuration: (4) NEMA 5-30R, (2) NEMA 5-20R, (2) NEMA L5-20R
• Built-in maintenance bypass for UPS maintenance without power interruptions
• Designed for Liebert GXT4 8–10 kVA UPS models
• Rack-mountable POD module with integrated wiring space for clean cable management
• Compact footprint optimized for dense rack deployments and flexible placement

How to Install Vertiv Liebert POD PD2

Installing the POD PD2 should be performed by qualified electrical personnel in accordance with local electrical codes and the Liebert installation guidelines. Begin by confirming compatibility with your Liebert GXT4 8–10 kVA UPS and ensuring the rack space can support the weight and size of the POD PD2. Prepare the installation area by verifying proper clearance around the unit for airflow, cabling, and service access. Gather the appropriate mounting hardware and wiring accessories recommended by Vertiv and align the POD PD2 with the overall Liebert power distribution strategy in the rack.

• Step 1: Prepare the rack area – Choose a stable 19-inch rack location with adequate space for the POD PD2, outlets, and cabling. Ensure there is easy access to the maintenance bypass switch and that the path to the UPS input/output is clear for safe wiring.
• Step 2: Mount the POD PD2 – Secure the POD PD2 to the rack using the provided rails or mounting hardware. Verify alignment with other Liebert components to facilitate service and future expansions.
• Step 3: Connect input and output wiring – Wire the POD PD2 to the UPS output per the Liebert installation guide, following all local electrical codes. Route the outlet cables to IT equipment with clear labeling for each circuit or outlet group.
• Step 4: Configure the maintenance bypass – Enable the built-in maintenance bypass as directed by the Liebert documentation. This step is essential to allow UPS maintenance while keeping critical devices powered through the bypass path.
• Step 5: Perform a functional test – With power restored, verify that each receptacle delivers the correct voltage under typical load. Test the bypass function by simulating UPS maintenance scenarios to ensure uninterrupted power to connected equipment.
• Step 6: Document and monitor – Record the installation details, wiring diagrams, and test results. Implement ongoing monitoring of outlet loads and ensure periodic maintenance checks are scheduled to maintain reliability.

Frequently Asked Questions

• What is the primary purpose of the POD PD2? The POD PD2 serves as a power output distribution module with a built-in maintenance bypass, allowing UPS maintenance without interrupting power to connected equipment, which helps keep critical IT workloads online during maintenance windows.
• Which UPS models is it designed to support? It is designed to work with Liebert GXT4 8–10 kVA UPS models, providing a cohesive power distribution solution that fits into Liebert's UPS ecosystem.
• What outlets does the POD PD2 provide? The unit includes four NEMA 5-30R outlets, two NEMA 5-20R outlets, and two NEMA L5-20R locking outlets, offering a versatile mix for servers, network devices, and peripheral gear.
• Is installation complicated? Installation should be performed by qualified personnel. The POD PD2 is designed for rack-mount installation and integrates with Liebert systems to streamline upgrades and ongoing maintenance in data centers and IT rooms.
• Can I perform UPS maintenance without powering down equipment? Yes. The built-in maintenance bypass is specifically designed to allow UPS maintenance or replacement without interrupting power to connected devices, supporting high-availability operations.
