Vertiv Avocent Rackmount Kit for AV2108/AV2216/AV3008/AV3016/AV3108/AV3216 and MPU108e

Elevate your IT rack setup with the Vertiv Avocent Rackmount Kit, a purpose-built mounting solution for Vertiv Avocent KVM switches. This robust kit provides secure, tool-friendly mounting in standard 19-inch racks, ensuring your AV2108, AV2216, AV3008, AV3016, AV3108, AV3216, and MPU108e devices stay precisely where you need them. Whether you’re outfitting a data center, server room, or lab, this rackmount kit helps simplify deployment, improve cable management, and protect critical KVM equipment from accidental bumps and misalignment.

• Compatibility and purpose: Specifically designed to fit Vertiv Avocent KVM switches AV2108, AV2216, AV3008, AV3016, AV3108, AV3216, and MPU108e, giving you a single, reliable mounting solution for multiple devices within your environment.
• Rugged construction: Made from durable steel with a long-lasting powder-coated finish, the rackmount kit is built to withstand the rigors of busy data centers and enterprise IT closets while preserving a clean, professional appearance.
• Quick, tool-friendly installation: Each kit includes all required metal brackets and screws, enabling straightforward installation without needing additional hardware or special tools.
• Space-conscious, rack-ready design: Engineered for standard 19-inch racks, this mounting solution keeps your switches secured in a compact footprint, freeing up valuable floor and rack space for other equipment.
• Enhanced cable management and airflow: The brackets promote neat cable routing and reduce stress on connections, supporting better airflow and easier maintenance in dense rack environments.

Technical Details of Vertiv Rackmount Kit

• Compatibility: Vertiv Avocent AV2108/AV2216/AV3008/AV3016/AV3108/AV3216 and MPU108e KVM switches

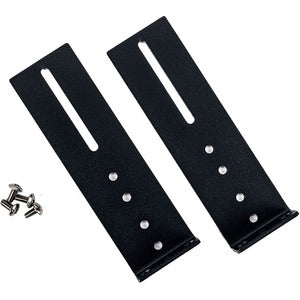

• Contents: Metal mounting brackets and screws
• Material: Steel
• Finish: Black powder-coated for durability and corrosion resistance
• Rack compatibility: Standard 19-inch equipment racks; suitable for securing Vertiv Avocent switches within typical IT environments

How to install Vertiv Rackmount Kit

Follow these simple steps to mount your Vertiv Avocent KVM switch using the rackmount kit:

• Step 1 – Prepare the equipment: Verify you have the correct Vertiv Avocent KVM switch model (AV2108/AV2216/AV3008/AV3016/AV3108/AV3216 or MPU108e) and a standard 19-inch rack. Clear the workspace and disconnect any power sources before starting.
• Step 2 – Attach mounting brackets: Use the supplied screws to secure the metal mounting brackets to the sides of the KVM switch. Ensure brackets are aligned so that the switch will sit evenly within the rack when installed.
• Step 3 – Position in the rack: With brackets attached, carefully slide the mounted KVM switch into the rack rails. Align the bracket holes with the rack’s mounting points and ensure the device sits level and securely supported.
• Step 4 – Secure to the rack: Use the remaining screws to fasten the brackets to the rack’s rails. Tighten gradually in a crisscross pattern to avoid Warping and to ensure even pressure across the mounting surfaces.
• Step 5 – Cable management and verification: Route power and data cables neatly, avoiding sharp bends or tension on connectors. Reconnect power, power up the switch, and verify all ports and management interfaces function correctly.

Frequently asked questions

• Q: Which Vertiv Avocent models are compatible with this rackmount kit?
  A: The kit is designed for Vertiv Avocent KVM switches AV2108, AV2216, AV3008, AV3016, AV3108, AV3216, and MPU108e.
• Q: What is included in the kit?
  A: The kit includes the metal mounting brackets and all necessary screws to secure the KVM switch in a standard 19-inch rack.
• Q: Can I use this kit in any 19-inch rack?
  A: Yes. The mounting brackets are designed for compatibility with standard 19-inch equipment racks commonly used in data centers and IT rooms.
• Q: Does this kit affect airflow or cable management?
  A: The design promotes neat cable routing and helps maintain proper airflow around mounted equipment, contributing to better thermal efficiency and easier maintenance.
• Q: Is professional installation required?
  A: Not necessarily. The kit is intended to be user-friendly with included brackets and screws, but if you’re not comfortable with rack work, a qualified technician can perform the installation.
