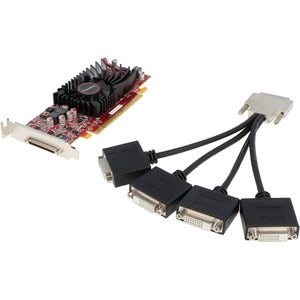

VisionTek Radeon 5570 SFF 1GB DDR3 4-Port DVI-D VHDCI PCIe Graphics Card

The VisionTek Radeon 5570 SFF 1GB DDR3 4-Port DVI-D VHDCI PCIe graphics card is a compact, power-packed solution for small form factor builds that demand strong multimedia performance and robust multi-monitor capabilities. Built on AMD's Radeon HD 5570 architecture, this card delivers DirectX 11 compatibility, smooth HD video playback, and dependable performance for everyday computing, light gaming, and professional tasks. With 1GB of DDR3 memory and four DVI-D outputs, it enables versatile display setups in mini-tc systems, home theaters, digital signage, and workstations where space is at a premium but display reach is important. Its SFF design makes it easy to fit into slim chassis without sacrificing modern graphics features.

• Compact SFF design with four DVI-D outputs: Designed for small form factor systems, this card packs four DVI-D display connections in a single low-profile card. Ideal for multi-monitor productivity, extended desktops, and digital signage in compact cases where space is at a premium.
• DirectX 11 ready graphics with versatile display features: Built on the Radeon HD 5570 engine, it supports DirectX 11 and modern 2D/3D graphics features, enabling crisp visuals, smooth media playback, and improved efficiency for everyday tasks and casual gaming. Multi-monitor capabilities are enhanced with Eyefinity-like workflows for expansive desktops.
• 1GB DDR3 memory for solid performance: The 1GB DDR3 framebuffer provides adequate memory bandwidth for everyday applications, rich multimedia, and entry to mid-range gaming without overtaxing system resources in compact builds.
• VHDCI connectivity and PCIe x16 interface: The card uses VHDCI connectors to deliver multiple DVI outputs and plugs into a PCIe x16 slot, delivering a straightforward upgrade path for existing systems that require more display outputs and modern GPU acceleration without a full-size PCIe card.
• Reliable, driver-friendly solution for small PCs: VisionTek combines solid hardware with broad driver support, ensuring compatibility with current operating systems and driver packages, plus easy driver updates to keep graphics features and security up to date.

Technical Details of VisionTek Radeon 5570 SFF 1GB DDR3 4-Port DVI-D VHDCI

• GPU: AMD Radeon HD 5570
• Memory: 1GB DDR3
• Memory Interface: 128-bit
• Bus/Interface: PCIe x16
• Display Outputs: 4 x DVI-D (via VHDCI connectors)
• DirectX: DirectX 11 compatible
• Form Factor: Small Form Factor (SFF), low-profile ready
• Power: PCIe powered (no external power connector required in typical configurations)

How to install VisionTek Radeon 5570 SFF 1GB DDR3 4-Port DVI-D VHDCI

• Power down your computer, unplug the power cord, and open the chassis side panel.
• Locate an available PCIe x16 slot on the motherboard and remove the corresponding backplate or cover if needed.
• Insert the Radeon 5570 card firmly into the PCIe x16 slot, aligning the bracket with the case opening.
• Secure the card with the screw on the expansion slot bracket, and attach any required low-profile or full-height brackets as appropriate for your case.
• Connect your display cables to the four DVI-D outputs. If you are using a smaller case or need additional adapters, configure them to support your multi-monitor layout.
• Power up the system, install or update the latest AMD/ATI graphics drivers from the official driver site, and restart if prompted.
• Open your display settings to configure multiple monitors, adjust resolution, orientation, and any Eyefinity-like display arrangements to maximize productivity or entertainment enjoyment.

Frequently asked questions

• Q: How many displays can I run with this card? A: Up to four displays via the four DVI-D outputs, making it suitable for extended desktops, multitasking setups, or digital signage in a compact PC.
• Q: Does it support DirectX 11 and modern graphics features? A: Yes. The Radeon 5570 architecture provides DirectX 11 support and related graphics features for everyday applications, multimedia, and light gaming.
• Q: Do I need an external power connector for this card? A: In typical configurations for this low-profile card, no additional power connector is required beyond the PCIe slot. Always verify your system’s power and connector availability.
• Q: Will this card fit in small form factor builds? A: Yes. The SFF design and optional low-profile bracket are intended for compact chassis and mini-ITX/ITX-like systems, delivering multi-monitor capability without bulk.
• Q: How do I configure multiple displays after installation? A: After installing drivers, use your operating system’s display settings to arrange monitor placement, set resolutions, and enable any multi-monitor features for your workflow or presentation needs.
