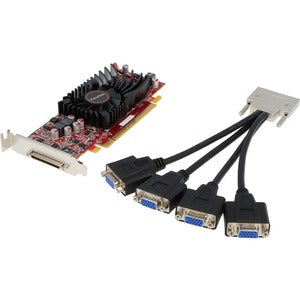

VisionTek Radeon 5570 SFF 1GB DDR3 4M VHDCI VGA (4x VGA) PCIe Graphics Card

Meet a compact powerhouse designed to drive multi-monitor productivity without compromising performance. The VisionTek Radeon HD 5570 1GB SFF 4-port VHDCI x16 PCIe graphics card, Part # 900366, delivers DirectX 11 capable graphics in a small-form-factor package, making it ideal for office workstations, digital signage, and compact PCs that demand dependable, quad-output display capability. Built around the proven Radeon HD 5570 architecture, this card blends efficiency, reliability, and flexible connectivity to empower four independent VGA displays from a single PCIe slot. Whether you’re expanding an existing desk setup, creating a cost-effective multi-display workstation, or deploying a compact video wall, this card makes it possible.

• Four-display versatility: With four VGA outputs provided through VHDCI connectors, you can drive up to four independent displays from one low-profile PCIe graphics card. This makes it an excellent choice for multi-monitor productivity, data analytics dashboards, trading terminals, classrooms, or digital signage where each screen can show different content or mirror a centralized desktop.
• DirectX 11 capable graphics: The Radeon HD 5570 core supports DirectX 11, enabling modern software and multimedia applications to render smoothly with better shading, textures, and overall visual fidelity. While compact, this card harnesses the power of a mainstream GPU to handle everyday graphical tasks, video playback, and light 3D workloads with efficiency and reliability.
• Efficient 1GB DDR3 memory: Equipped with 1GB of DDR3 memory, the card provides sufficient bandwidth for typical office and media tasks, ensuring responsive window management, colorful visuals, and steady performance across multiple displays when running productivity suites, web applications, or conference-room setups.
• Small-form-factor (SFF) PCIe x16 design: The low-profile, single-slot, SFF design fits compact desktops and systems with limited expansion space. Its PCIe x16 interface ensures broad compatibility with modern motherboards, while the compact footprint makes integration into space-constrained builds straightforward and clean.
• Reliability and compatibility: VisionTek’s engineering delivers robust hardware with support for a range of operating systems and driver updates. The Part # 900366 designation helps with procurement and serviceability in business deployments, ensuring a dependable solution for multi-display environments without requiring a high-end gaming GPU.

Technical Details of VisionTek Radeon 5570 SFF 1GB DDR3 4M VHDCI VGA (4x VGA)

• GPU: ATI Radeon HD 5570 architecture, delivering DirectX 11 support and improved efficiency for everyday graphics tasks.
• Memory: 1GB DDR3 DDR3 memory configuration, designed to balance performance and power efficiency for typical multi-display workflows.
• Interface: PCI Express x16 interface for broad compatibility with most modern desktop motherboards and workstation platforms.
• Form Factor: Small-form-factor (SFF) / low-profile design suitable for compact cases and space-constrained environments.
• Outputs: 4x VGA connectors via VHDCI (Very High-Density Connector) for four independent VGA displays, enabling extensive multi-monitor configurations.
• Part Number: 900366, used for identification, ordering, and support purposes in business deployments.
• Display capabilities: Multi-display support through four VGA outputs, suitable for expanding presentational or productivity setups across multiple screens.
• Power and cooling: Designed to operate within standard PCIe power envelopes and typical workstation cooling environments; no additional power connector required beyond PCIe slot on most configurations.

How to Install VisionTek Radeon 5570 SFF 1GB DDR3 4M VHDCI VGA

• Power off your computer, unplug the power cable, and ground yourself to prevent static discharge.
• Open the computer case and locate an available PCIe x16 slot that is unobstructed and can accommodate a PCIe video card.
• Remove the corresponding expansion slot cover on the back of the chassis to align with the card’s ports.
• Carefully insert the VisionTek Radeon 5570 card into the PCIe x16 slot. Apply even pressure until the card seats firmly and the bracket aligns with the case opening. Secure the card with a screw at the rear.
• Connect your four VGA displays to the VHDCI connectors on the card using appropriate cables or adapters. Ensure each display is securely connected and oriented as needed for your workspace.
• Close the case, reconnect power, and boot the system. If prompted, install or update the graphics drivers from VisionTek’s website or the driver disk that accompanies the card to enable proper multi-display functionality and DirectX 11 support.
• Configure your displays in your operating system’s display settings to arrange the layout, set the primary display, and extend or mirror as required by your workflow.

Frequently asked questions

Q: What kind of outputs does this card provide? A: The card provides four VGA outputs via VHDCI connectors, enabling four separate displays to be driven from a single PCIe slot.

Q: Does the card support DirectX 11? A: Yes. The Radeon HD 5570 core on this card supports DirectX 11, expanding compatibility with modern software and multimedia applications.

Q: How much memory does the card have? A: It comes equipped with 1GB of DDR3 memory, which supports ordinary multi-display tasks and daily productivity workloads.

Q: What is the form factor? A: It uses a small-form-factor (SFF), low-profile PCIe x16 interface, designed for compact desktops and space-constrained deployments.

Q: What is the part number for this card? A: The part number is 900366, which helps with procurement, inventory, and driver lookup in business environments.
