Description

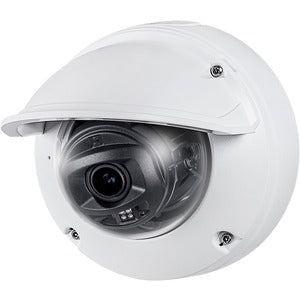

Engineered for demanding outdoor environments, the Vivotek FD9367-EHTV-v2 delivers reliable 2 megapixel Full HD surveillance with advanced compression and robust protection. This color, dome network camera is designed to perform across day and night, providing crisp 1080p video, flexible viewing with a 5x optical zoom, and long-range infrared night vision. Built to withstand harsh conditions, it features IK10 vandal resistance and high-level weather sealing (IP66/IP67), making it an ideal solution for entrances, perimeters, parking lots, and industrial sites. As a TAA-compliant model, it is suitable for public sector and commercial deployments seeking transparent procurement options. With support for H.265, H.264, and MJPEG, it balances image quality and bandwidth efficiency, while a conduit mount offers flexible installation in challenging environments. This camera is optimized for reliable, continuous monitoring, delivering smooth motion at up to 60 frames per second to capture fast-changing scenes with clarity and precision.
- High-definition imaging with efficient compression: 2 MP CMOS sensor delivers crisp 1920 x 1080 resolution, while H.265, H.264, and MJPEG formats provide versatile streaming options to match bandwidth constraints without sacrificing image quality.
- Versatile optic system with strong zoom capability: A 2.70–13.50 mm fixed lens offers 5x optical zoom, enabling detailed views from a variety of deployment heights and focal lengths to cover doorways, lanes, and faces with accuracy.
- Crystal-clear night vision and wide operating range: Infrared night vision extends up to 164.04 feet, delivering reliable color imagery in daylight and high-contrast monochrome capture after dark for perimeter and low-light monitoring.
- Rugged protection for outdoor and vandal-prone sites: IK10-rated vandal resistance paired with IP66/IP67 weatherproofing ensures dependable operation against impacts, rain, dust, and harsh weather conditions.
- Smart deployment features and compliance: TAA compliant for procurement flexibility, conduit mount compatibility for secure installations, and a design tuned for smooth, high-frame-rate video up to 60 fps for fast-moving scenes.
Technical Details of Vivotek FD9367-EHTV-v2
- Vivotek FD9367-EHTV-v2
- 2 MP CMOS
- 1920 x 1080 (Full HD)
- Up to 60 fps
- 2.70 mm – 13.50 mm fixed lens with 5x optical zoom
- H.265, H.264, MJPEG
- Color during the day; infrared night vision for low-light conditions
- Up to 164.04 feet (IR distance)
- IK10 vandal-resistant housing
- IP66 and IP67 rated for harsh outdoor environments
- Conduit mount compatible
- TAA compliant
how to install Vivotek FD9367-EHTV-v2
Installing the Vivotek FD9367-EHTV-v2 is designed to be straightforward for professional security installers. Start by choosing a weather-protected mounting location with a clear field of view and minimal glare. Ensure the mounting surface can support the weight of the camera and that you have access to power and network connectivity in the chosen area. Follow these essential steps to deploy the camera quickly and securely:
- Plan the mounting position: Select a high, unobstructed spot that provides the desired coverage. Check line-of-sight for critical entry points and ensure the infrared range aligns with the target area.
- Prepare the conduit and mounting hardware: Use the conduit mount included with the camera. Verify that electrical and network conduits are installed to protect cables from the elements and physical damage.
- Attach the camera to the mount: Secure the camera housing to the conduit mount according to the installation template. Tighten screws evenly to maintain a watertight seal and optical alignment.
- Provision power and network connectivity: Connect the camera to a network with appropriate cabling, using Power over Ethernet (if available) or the approved power supply. Ensure network access for the camera’s configuration interface.
- Configure camera settings: Access the camera’s web interface, set the appropriate IP, enable H.265/H.264/MJPEG streams, adjust the color balance, exposure, and illumination levels, and configure infrared night vision parameters for the site.
- Set focus and zoom: With the lens in position, adjust focus and zoom to frame the desired scene. Use the 5x optical zoom to target faces or license plates and verify sharpness across the field of view at various distances.
- Test and optimize: Perform a live test to confirm coverage, lighting balance, and motion performance. Fine-tune motion detection areas, backlight compensation, and privacy masking as required for compliance and privacy.
- Document and secure: Record the device’s IP address, login credentials, and warranty information. Update firmware if needed and apply any available security hardening steps to reduce exposure to threats.
Frequently asked questions
- What is the resolution and frame rate of the Vivotek FD9367-EHTV-v2? It delivers 2 MP High-Definition video at up to 60 frames per second, ensuring smooth playback and accurate motion capture for fast-moving scenes.
- What is the infrared night vision range? The camera provides infrared illumination up to 164.04 feet, enabling reliable night-time surveillance with clear detail at distances suitable for perimeters and entrances.
- Is the camera weatherproof and vandal-resistant? Yes. It carries IP66/IP67 weather resistance and IK10 vandal resistance, making it suitable for outdoor use in challenging environments and resistant to tampering.
- What video formats does it support? The FD9367-EHTV-v2 supports H.265, H.264, and MJPEG, giving you options to optimize bandwidth and storage without compromising image quality.
- Is this camera compliant with procurement standards? Yes, it is TAA compliant, making it a viable option for government and enterprise purchases that require this certification.
