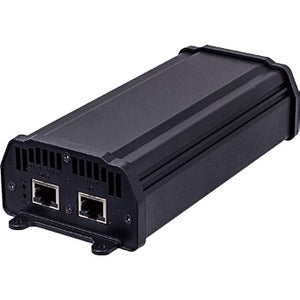

Vivotek Indoor 60W UPoE Injector (1xGE)

The Vivotek Indoor 60W UPoE Injector is a compact, reliable solution designed to power high-demand IP devices over a single Ethernet cable. Built for indoor deployments, this injector delivers up to 60 watts of power at 54 V DC through a single PoE output port, making it ideal for network cameras, access points, and other 54V PoE-powered devices. With a focus on simplicity, robust performance, and seamless integration, it helps you reduce clutter, simplify installation, and maintain a clean, efficient powered network at the edge. Whether you are upgrading an existing system or building a new one, this UPoE injector gives you the power you need without compromising on network speed or reliability.

• High-power UPoE delivery: Provides up to 60 watts of power over a single PoE output at 54 V DC, enabling reliable operation of high-power IP cameras, door locks, and other 54V PoE devices without a separate power supply at each device.
• Single-port PoE output and data input: Features 1 x PoE output port and 1 x 10/100/1000Base-T input port, allowing you to carry both data and power to the connected device over a single Ethernet cable for simplified installations.
• Indoor-ready design: Built for indoor environments with a compact, durable housing that fits neatly in racks, cabinets, or wall-mount setups, keeping equipment rooms organized and signage unobtrusive.
• Energy-efficient versatility: Optimized for use with a wide range of IP cameras and edge devices, providing steady, reliable power to support continuous operation, high-definition streaming, and advanced features like night vision and analytics.
• Easy integration and management: Designed to work with existing PoE networks and standard Ethernet cables, reducing installation time and simplifying maintenance while ensuring stable power delivery to critical devices.

Technical Details of Vivotek Indoor 60W UPoE Injector

• PoE Output Port(s): 1 x PoE output
• Input Port(s): 1 x 10/100/1000Base-T input
• Output Power: 60 W
• Output Voltage: 54 V DC
• Form Factor: Indoor-rated injector with compact housing
• Power Interface: UPoE-compatible, suitable for high-power IP devices

how to install Vivotek Indoor 60W UPoE Injector

• Plan your installation in a safe, accessible indoor location near your network switch and PoE device. Ensure there is adequate ventilation to prevent overheating during operation.
• Connect the network switch or data source to the injector’s 1 x 10/100/1000Base-T input port using a standard Ethernet cable. This provides the data channel for your PoE device.
• Connect your PoE-enabled device (such as a Vivotek IP camera, door controller, or access point) to the injector’s 1 x PoE output port with a second Ethernet cable. The device will receive both data and power through this link.
• Provide the 54 V DC power input as required by the injector. If your setup uses an external 54V DC power supply, connect it to the injector according to the manufacturer’s guidelines. Ensure all power connections are secure and comply with local electrical standards.
• Power on the injector and verify operation. Check the data link indicators on the connected switch and the PoE device, and confirm that the device powers up and communicates on the network. If available, monitor status LEDs on the injector for PoE activity and link status to confirm a healthy setup.

Frequently asked questions

• Q: What devices can I power with this UPoE injector?
  A: The injector is designed to deliver up to 60W at 54 V DC, making it suitable for high-power PoE devices such as certain IP cameras, access points, and other 54V-powered network equipment that require a robust PoE supply. Always confirm your device’s power requirement and compatibility with UPoE/IEEE standards before installation.
• Q: Do I need a separate power supply for this injector?
  A: Yes, you typically need a 54V DC power source to feed the injector’s internal circuitry and provide the 54 V DC output. The exact power supply requirements will be specified in the product manual or datasheet. Use a compliant, properly rated power supply and follow all safety guidelines during installation.
• Q: What is the advantage of UPoE in this injector?
  A: UPoE is designed to deliver higher power over Ethernet than standard PoE, enabling more capable devices to operate from a single cat cable. This injector’s 60W output at 54V DC supports devices with higher power demands, reducing the need for separate power adapters at the device end.
• Q: Can I install this injector in an outdoor environment?
  A: No. This model is described as an indoor injector, and it should be installed in a dry, protected indoor space. For outdoor deployments, look for weather-rated PoE injectors and enclosures designed for outdoor use.
• Q: What cables are recommended?
  A: Use category-rated Ethernet cables (Cat5e, Cat6 or higher) that meet your network requirements. For PoE performance and distance, ensure cables are properly terminated and not damaged or excessively long beyond recommended USB/Ethernet distance guidelines.
