Description

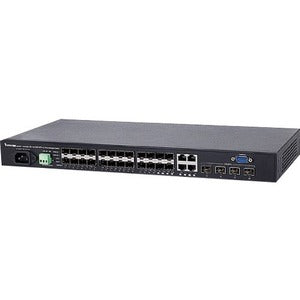

Meet the Vivotek AW-GTS-287A L2 Plus Managed Switch, a high-performance networking edge device designed to power demanding surveillance, security, and business networks. This next-generation switch blends robust Layer 2 capabilities with optional Layer 3 static routing, delivering efficient traffic orchestration, flexible uplinks, and scalable performance. With 20 1G Ethernet ports featuring SFP compatibility, plus 4 versatile combo GE ports and 4 dedicated 1G/10G SFP+ uplinks, the AW-GTS-287A offers flexible deployment options from edge access to uplink aggregation. It is engineered to support VLAN segmentation, QoS, and reliable link management, ensuring critical streams—such as video, voice, and data—receive the priority they deserve. The compact, 1U form factor makes it ideal for rack mounting in data rooms, server closets, or security operation centers, while its intuitive management interface—web GUI, CLI, and SNMP—streamlines configuration, monitoring, and troubleshooting. If you’re expanding a surveillance network or building a multi-subnet enterprise network, this switch delivers the performance, reliability, and control needed to optimize bandwidth, minimize latency, and simplify administration.
- Flexible port configuration: 20 x 1G Ethernet ports with SFP support for fiber connections, complemented by 4 x Combo GE ports that can operate as copper RJ-45 or SFP links, enabling versatile cabling and topology options.
- High-speed uplinks for core networks: 4 x 1G/10G SFP+ uplink ports provide fast aggregation to the core or data center, allowing you to scale bandwidth and simplify multi-subnet architectures.
- L2 Plus features with optional L3 routing: A rich set of Layer 2 features plus Static Route capabilities deliver improved routing efficiency and cost-performance in networks that require simple inter-subnet routing without a separate router.
- Advanced traffic control: Built-in VLANs, Quality of Service (QoS), and robust frame management help prioritize security cameras, voice devices, and mission-critical data while reducing congestion.
- Easy management and security: Manage the switch via a web-based GUI, command-line interface, or SNMP, with secure access controls to safeguard configuration and monitoring data while simplifying maintenance tasks.
Technical Details of Vivotek L2 Plus Managed Switch
- Model: AW-GTS-287A L2 Plus Managed Switch
- Ports: 20 x 1G Ethernet ports with SFP compatibility for flexible fiber/copper connectivity
- Combo ports: 4 x Combo GE ports (RJ-45 or SFP) for copper or fiber uplink versatility
- Uplinks: 4 x 1G/10G SFP+ uplink ports for high-speed core connectivity and scalable expansion
- Layer features: Layer 2+ switching with optional Layer 3 Static Routing to improve routing efficiency in subnetted environments
- Network protocols: VLAN support, Quality of Service (QoS), Link Aggregation, STP/RSTP/MSTP, LLDP for topology discovery
- Management: Web-based GUI, CLI, and SNMP (v1/v2c/v3) for flexible, centralized administration and monitoring
- Security and reliability: Role-based access and secure management to protect configurations and network visibility
- Form factor: 1U rack-mountable chassis designed for data centers, telecom rooms, or security operation centers
- Power and efficiency: Standard AC power input with a focus on reliable operation in enterprise environments
How to Install Vivotek L2 Plus Managed Switch
- Plan and prepare: Review your network topology and determine the desired uplink routes, VLANs, and QoS policies. Ensure you have the appropriate fiber or copper cables for SFP/SFP+ ports and the correct adapters for Combo ports.
- Mount the switch: Install the AW-GTS-287A in a 1U rack enclosure or place it on a secure shelf in your equipment room. Use standard rack mounting hardware if available and ensure adequate ventilation.
- Connect power and grounding: Connect the switch to a compliant power source and connect to proper grounding per your data center or room policies. Verify power indicators to confirm startup readiness.
- Connect network cabling: Attach fiber links to SFP/SFP+ ports and copper cables to RJ-45 ports or Combo ports as required by your design. Ensure cable runs minimize interference and meet distance specifications.
- Access the management interface: From a workstation on the same network, access the switch’s management interface via its default IP address or a configured management IP. Log in with the default credentials and immediately set a strong administrator password.
- Configure basic settings: Establish your management VLAN, IP addressing, and access controls. Update firmware if available, then configure Layer 2 features such as VLANs, QoS, and Link Aggregation to match your policy.
- Set up advanced features: Enable Static Routing if required for inter-subnet communication, configure STP/RSTP/MSTP for loop prevention, and apply LLDP for network topology discovery. Save your configuration and validate connectivity between devices.
- Test and monitor: Verify connectivity across access ports, uplinks, and inter-subnet routes. Monitor traffic patterns, check for error counters, and confirm that prioritized streams (e.g., video) are receiving appropriate bandwidth and low latency.
Frequently Asked Questions
- What is the Vivotek L2 Plus AW-GTS-287A? It is a Layer 2 Plus managed switch that combines a dense edge port layout with flexible uplinks and optional Layer 3 static routing to support multi-subnet deployments, ideal for surveillance networks and mid-sized business environments.
- How many ports and uplinks does it have? It includes 20 x 1G Ethernet ports with SFP compatibility, 4 x Combo GE ports for copper or fiber, and 4 x 1G/10G SFP+ uplink ports for high-speed aggregation.
- How is the switch managed? The AW-GTS-287A provides a web-based GUI, a command-line interface, and SNMP support, enabling flexible management, configuration, and monitoring across LANs and subnets.
- Does it support VLANs, QoS, and static routing? Yes. The switch supports VLAN segmentation and QoS to prioritize traffic, and it includes Layer 3 Static Routing for inter-subnet routing where needed.
- Is this switch suitable for surveillance networks? Yes. Its port layout, uplink flexibility, and QoS capabilities are well-suited for surveillance deployments that require reliable video traffic handling and scalable connectivity.
- What is the recommended deployment scenario? Use the AW-GTS-287A as a distribution or access edge switch in small-to-mid-sized networks, with uplinks to core devices and dedicated ports for cameras, servers, and storage, while leveraging VLANs and QoS to optimize performance.
