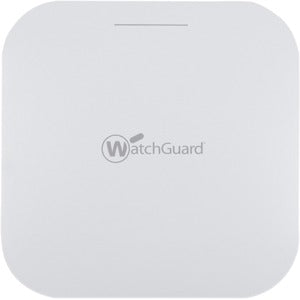

WatchGuard AP330 Dual Band IEEE 802.11ax 1.73 Gbit/s Wireless Access Point - Indoor

The WatchGuard AP330 Dual Band IEEE 802.11ax 1.73 Gbit/s Wireless Access Point is engineered to meet the diverse connectivity demands of modern businesses. Tailored for mid-density indoor environments, this robust Wi-Fi 6 access point ensures seamless connectivity with enhanced security features. Experience lightning-fast internet speeds while benefiting from the advanced WPA3 encryption for optimal data protection. Whether you're in an office, educational institution, or retail space, the AP330 is your go-to solution for reliable wireless access.

• Enhanced Wi-Fi 6 Technology: The AP330 is designed to support the latest Wi-Fi 6 standards, providing users with a maximum data rate of up to 1.2 Gbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This ensures faster speeds and improved overall performance for your connected devices.
• Optimal Coverage: Equipped with six omnidirectional internal antennas and a 2x2 radio scanning system, the AP330 delivers a powerful signal throughout your indoor environment, ensuring that every corner is covered for a reliable connection.
• Robust Security Features: The AP330 utilizes the latest WPA3 encryption technology, providing enhanced security for your network. This feature ensures that your sensitive data remains protected from unauthorized access, making it ideal for businesses and organizations that prioritize cybersecurity.
• Efficient Power Options: With Power over Ethernet (PoE) capabilities, the AP330 supports both 12V/2A DC In and 802.3at (PoE+) power options, allowing for flexible installation without the need for additional electrical outlets.
• High TX Power and Gain: The maximum transmission (TX) power of 22 dBm, combined with a 2 dBi antenna gain, ensures that you can achieve a strong and stable connection, even in high-density environments.

Technical Details:

• Model: WatchGuard AP330
• Standard: IEEE 802.11ax (Wi-Fi 6)
• Maximum Data Rate: 1.73 Gbit/s (1.2 Gbps on 5 GHz, 574 Mbps on 2.4 GHz)
• Radio System: 2x2 MIMO with six internal omnidirectional antennas
• Maximum TX Power: 22 dBm
• Antenna Gain: 2 dBi
• Ethernet Ports: 1 port supporting up to 2.5 Gbps
• Power Supply: 12V/2A DC In, 802.3at (PoE+)

How to Install:

Installing the WatchGuard AP330 is straightforward. Follow these steps for an efficient setup:

1. Unbox the AP330 and ensure all accessories are present.
2. Choose an appropriate location for installation, ensuring optimal coverage and accessibility to power outlets.
3. If using PoE, connect the Ethernet cable from your PoE switch to the AP330's Ethernet port. Alternatively, connect the 12V/2A power supply.
4. Power on the device and wait for the status LED to indicate readiness.
5. Use the WatchGuard Cloud or Management License to configure your access point settings as needed for your network.

Frequently Asked Questions:

1. What is the maximum coverage area of the AP330?

The coverage area depends on various factors such as the layout of the space, the number of obstacles, and interference from other devices. However, the AP330 is optimized for mid-density environments, providing considerable coverage.

2. Do I need a Management License to use the AP330?

Yes, an active Management License is required to activate and manage the WatchGuard AP330. You can choose between a Standard or USP Management License based on your needs.

3. Can I use the AP330 outdoors?

The AP330 is designed for indoor use. For outdoor environments, consider using a dedicated outdoor access point from WatchGuard.

4. Is installation of the AP330 complicated?

No, the installation process is simple and can be done by following the easy steps provided in the installation guide. No specialized skills are required.

5. What security features does the AP330 offer?

The AP330 supports WPA3 encryption, which provides enhanced security for your network, making it more resistant to unauthorized access and potential threats.
