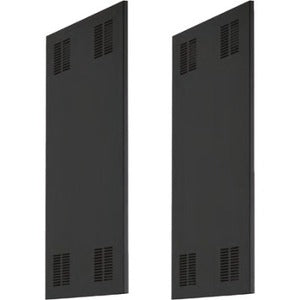

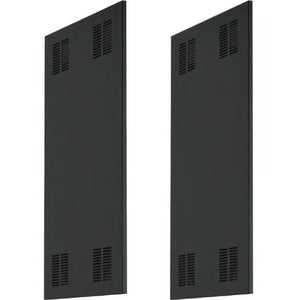

Winsted Side Panel
Introducing the Winsted Side Panel, a premium steel enclosure accessory engineered to complete your 45U rack setup with lasting durability and professional appeal. Built for data centers, IT rooms, and industrial environments, this side panel protects sensitive equipment from dust, debris, and incidental impacts while maintaining a clean, streamlined appearance. The panel’s 78.8-inch height and 24-inch depth are designed to perfectly complement tall, deep rack frames, ensuring consistent airflow and easy maintenance access. Finished in a rugged black powder coat, it resists scratches and corrosion, preserving a sleek look even in high-traffic environments. With straightforward compatibility with standard 19-inch rack components, the Winsted Side Panel simplifies expansion, upgrades, and standardization across multi-rack deployments.
- Durable steel construction: engineered to withstand frequent handling and routine maintenance in busy rack rooms. The panel features reinforced joints and precision-fit tolerances that resist bending and flexing, delivering dependable performance over years of service in demanding IT spaces.
- 45U rack compatibility: specifically designed to integrate with 45U configurations, maximizing enclosure capacity while preserving a clean, uniform rack face. This panel helps you maintain a consistent, professional look across large-scale installations and multi-rack environments.
- 78.8" height and 24" depth: tailored to match tall, deep server racks without interfering with cabling, cooling, or accessibility. The generous depth supports robust cable management and effective airflow, helping maintain optimal thermal performance inside the cabinet.
- Black powder coat finish: a durable, corrosion-resistant finish that resists scuffs and fingerprints while delivering a sleek, modern aesthetic. The coating maintains color consistency in busy facilities and complements other black or dark-toned data-center equipment.
- Easy, secure installation: designed for straightforward integration with standard rack hardware. The Winsted Side Panel supports quick alignment with existing rails and mounting holes, enabling faster deployment, simplified maintenance access, and reduced downtime for upgrades or reconfigurations.
Technical Details of Winsted Side Panel
- Material: Steel
- Finish: Black Powder Coat
- Rack Height: 45U
- Height: 78.8 inches
- Depth: 24 inches
- Product Type: Side Panel for standard 19" rack systems
- Compatibility: Designed to pair with standard rack frames and mounting hardware
- Mounting: Uses standard rack side-fastening points and screws (hardware compatibility noted; verify installation hardware on hand)
How to Install Winsted Side Panel
Installing the Winsted Side Panel is a straightforward process that preserves reliability while minimizing downtime. Follow these steps to ensure a precise fit and secure enclosure appearance:
- Prepare the rack area by clearing the workspace and confirming that the rack is clean and free of obstructions. Verify that your rack supports 45U configurations and standard 19" mounting spacing.
- Align the side panel with the corresponding mounting holes on the rack frame. Start with a visual check to ensure the panel sits flush against the outer surface and that no edges are bent or distorted.
- Insert the appropriate mounting screws through the panel’s predrilled holes and thread them into the rack’s mounting points. Use a screwdriver or power tool with care to avoid over-tightening, which can damage screw threads or the panel.
- Torque the fasteners evenly in a crisscross pattern if multiple screws are used, ensuring consistent pressure along the panel edge. Double-check that the panel remains square to the rack face and that there is no binding against doors or adjacent panels.
- Inspect the installation for alignment, clearance, and cable management. Reattach any removed cables or accessories as needed, and test that the panel opens and closes smoothly if the design includes a hinged option.
Frequently asked questions
- What is the material? Steel.
- What finish does it have? Black powder coat.
- What rack height does it fit? 45U.
- What are the dimensions? 78.8" (height) x 24" (depth).
- What is its purpose? Side panel for standard 19" rack systems, designed to protect equipment, manage airflow, and provide a finished, professional look.
- Is hardware included for installation? Mounting hardware compatibility is noted; verify screws and brackets with your specific rack model to ensure proper fit.
- Where should I use this panel? Data centers, IT rooms, and industrial environments requiring durable rack-side protection and a cohesive aesthetic.
