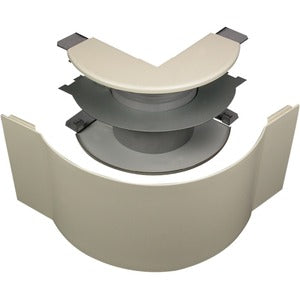

Wiremold 4000 Radiused Full Capacity External Elbow Ffitting

WiremoldSKU: 7101816

Price:
Sale price$86.23

Description

Wiremold 4000 Radiused Full Capacity External Elbow Ffitting

Step into a streamlined, code-compliant approach to cable management with the Wiremold 4000 Radiused Full Capacity External Elbow Ffitting. This premium elbow is engineered to deliver a smooth, radiused 90-degree turn in the Wiremold 4000 full-capacity raceway system, preserving the integrity of dense cable bundles while facilitating fast, tool-efficient installations. Designed for both divided and undivided applications, it accommodates a wide range of cables—from copper UTP and shielded STP to modern fiber optic runs—without compromising performance or accessibility. Whether you’re wiring a new commercial space or expanding an existing network, this elbow helps you create clean, professional cable pathways that stand up to daily use, future upgrades, and routine maintenance.

  • Radiused 90-degree corner for minimal bend stress: The interior radius is engineered to reduce bending strain on UTP, STP, and fiber optic cables, helping extend cable life and maintain signal integrity through long cable runs.
  • Full-capacity design for dense cable fills: Constructed to accommodate high cable counts without creating bottlenecks at the bend, ensuring reliable routing even in crowded installations.
  • Versatile for divided and undivided applications: Supports multiple wiring schemes, giving you the flexibility to route cables the way your project requires while preserving organizational clarity.
  • Optimized for lay-in or pull-through installations: Ideal for new builds or retrofits where cables are fed through the raceway, enabling efficient pull or drop-in methods with minimal friction.
  • Durable, professional-grade construction: Built to endure the rigors of commercial environments, delivering a clean, finished look that aligns with industry standards and project timelines.

Technical Details of Wiremold 4000 Radiused Full Capacity External Elbow Ffitting

  • Compatibility: Works with Wiremold 4000 full-capacity raceways to ensure a seamless, integrated system fit.
  • Angle and bend: 90-degree external corner with a radiused interior to minimize cable stress and promote smooth transitions between straight runs.
  • Bend radius: 2 inches (51 mm) to maintain cable integrity for UTP, STP, and fiber optic cables while keeping pathways efficient.
  • Cable types supported: Suitable for UTP, STP, and fiber optic cables, making it a versatile choice for data, voice, and high-speed networks.
  • Applications: Designed for both divided and undivided routing configurations to accommodate diverse installation needs.
  • Installation orientation: Optimized for lay-in or pull-through installations, enabling straightforward integration into ongoing or new raceway layouts.
  • Construction: Durable plastic construction engineered for steady performance in commercial environments with consistent results over time.
  • Finish: Standard finish aligns with typical Wiremold raceway aesthetics; verify product finish in the official spec sheet for exact color/match.

How to install Wiremold 4000 Radiused Full Capacity External Elbow Ffitting

To integrate the elbow into a Wiremold 4000 raceway run, prepare the work area with clean channels and confirmed corner routing. Confirm that the chosen path maintains the recommended bend radius and avoids pinch points or sharp edges. Align the elbow with the adjacent raceway sections, ensuring the entry and exit points line up for a seamless transition. Secure the elbow to the raceway using the manufacturer’s mounting method and ensure a firm, vibration-free connection. Begin threading cables through the elbow from the upstream side, taking care to keep the bend radius at or above 2 inches (51 mm) and to avoid kinks or crushing of cables, particularly fiber optics. Once cables are running smoothly through the elbow, close the raceway cover and fasten it according to the standard installation procedure. After enclosure completion, perform a pull test to verify unobstructed movement and inspect for any undue strain on the cables. Finally, label the run for future maintenance and compliance checks, ensuring the routing remains easy to trace during inspections.

Frequently asked questions

  • What is the primary benefit of the 2-inch bend radius? The 2-inch radius minimizes stress on cables during turns, helping preserve signal integrity for data and reducing the risk of damage to fiber optic fibers while maintaining overall run geometry.
  • Which cable types can this elbow accommodate? It supports UTP, STP, and fiber optic cables, making it suitable for mixed cable environments often found in modern offices, data centers, and commercial spaces.
  • Is this elbow suitable for both divided and undivided raceway configurations? Yes. It is designed to function effectively in either arrangement, offering installation flexibility for diverse layouts.
  • Can it be used in new installations as well as retrofits? Absolutely. The elbow is optimized for lay-in and pull-through cable routing, making it a practical choice for both new builds and upgrades.
  • What should I verify during installation? Ensure that the bend radius is maintained, the elbow is securely seated within the adjacent raceway sections, and that the cables pass through without kinks or excessive tension. Always follow local codes and manufacturer guidelines for a compliant installation.
