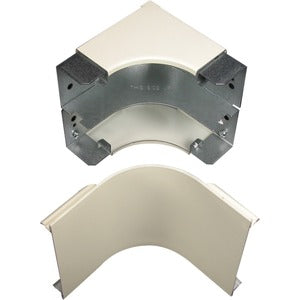

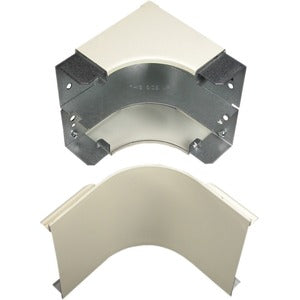

Wiremold 4000 Radiused Full Capacity Internal Elbow Fitting
The Wiremold 4000 Radiused Full Capacity Internal Elbow Fitting is a versatile, high-capacity solution designed to streamline cable management inside raceways. It delivers a controlled 2" (51 mm) bend radius for UTP, STP, and fiber optic installations, helping you maintain signal integrity while simplifying installation in new builds. Whether you’re laying cables in the raceway or pulling them through an existing system, this elbow fits seamlessly into your Wiremold infrastructure, enabling efficient routing, organized cabling, and reliable performance in commercial, industrial, and residential projects alike. With its full-capacity, divided interior, you can optimize space inside tight runs without sacrificing cable protection or ease of access, making it an essential component for professional, code-compliant cable management.
- Optimized cable routing for space-efficient installs: The 4000 Radiused Full Capacity Internal Elbow Fitting is engineered to guide cables smoothly around corners, allowing you to maximize the usable space within the raceway. This design minimizes the risk of pinch points, abrasion, and cable crowding, improving overall system reliability and simplifying future upgrades. In cramped wall cavities, elevated ceilings, and commercial installations where space is at a premium, this elbow helps you keep cables neatly organized and easy to trace, reducing maintenance time and enabling faster, cleaner installations.
- Precise 2" bend radius for diverse cable types: A generous bend radius protects delicate cables from excessive bending stress while accommodating a range of cable profiles, including UTP, STP, and fiber optic runs. By preserving signal integrity and reducing microbending-related attenuation, this elbow supports better network performance, fewer re-works, and longer cable life in environments with dense cabling and rapid data growth. The radiused interior also minimizes snagging during installation, making pulls smoother and less labor-intensive.
- Full capacity, divided internal elbow for organized cabling: The divided interior keeps cable groups neatly separated, reducing crosstalk and interference between data, voice, and video paths. This separation is especially valuable in mixed-technology installations where power and communications cables share the raceway. By maintaining distinct channels, the elbow helps installers achieve cleaner terminations, easier future changes, and improved thermal management within the enclosure, contributing to sustained performance over time.
- Ideal for lay-in or pull-through installations: Whether you’re integrating cables as part of a new raceway build or adding to an existing system, this elbow supports both lay-in and pull-through methods. The flexible compatibility speeds up project timelines, lowers labor costs, and reduces the likelihood of damage during installation. Its robust design stands up to frequent handling, making it a dependable choice for contractors who value efficiency without compromising quality.
- Reliability and space-conscious design for long-term use: Built to withstand daily use in demanding environments, the elbow delivers consistent performance across various applications. The full-capacity interior together with a radiused profile minimizes resistance and stress on cables as they navigate corners, supporting long-term reliability and predictable performance as installations scale or reconfigure over time.
Technical Details of Wiremold 4000 Radiused Full Capacity Internal Elbow Fitting
- Bend Radius: 2" (51 mm)
- Cable Types Supported: UTP, STP, and fiber optic cables
- Capacity: Full capacity, divided internal elbow
- Installation Type: Suitable for new installations with lay-in or pull-through methods
- Cable Routing Advantage: Allows efficient use of available space within the raceway, promoting reliable cable routing and optimal performance
How to install Wiremold 4000 Radiused Full Capacity Internal Elbow Fitting
Follow these general steps to integrate the elbow into your Wiremold raceway system and maintain pristine cable routing:
- Plan and prepare: Assess the run, confirm fit with the Wiremold 4000 series elbow, and clear the installation path. Verify bend radius compatibility with your cable types (UTP, STP, fiber) to prevent excessive bending or stress.
- Prepare the raceway: Clean, cut, and deburr the raceway as needed. Ensure interior dividers are aligned to preserve the full-capacity interior and to help prevent cable snagging during insertion.
- Insert cables: Feed cables through the main raceway and into the elbow, maintaining smooth curves and avoiding sharp bends. Utilize the divided interior to route different cable groups if required for organization and signal integrity.
- Attach the elbow to the system: Secure the radiused elbow into adjacent raceway sections according to manufacturer guidelines. Ensure a snug fit to prevent movement, misalignment, or gaps that could affect performance.
- Route and secure: Continue routing cables through the elbow toward downstream sections, securing with ties or clamps as needed. Verify clearance, bend integrity, and signal performance, and adjust as necessary to meet applicable codes and standards.
Frequently asked questions
- Q: What is the cable bend radius of the Wiremold 4000 Radiused Full Capacity Internal Elbow Fitting? A: It provides a controlled 2" (51 mm) bend radius to protect UTP, STP, and fiber optic cables during routing.
- Q: What installations is it best suited for? A: It’s ideal for new installations, whether cables are laid-in or pulled-through, with a full-capacity, divided interior for organized cabling.
- Q: Which cable types can pass through? A: UTP, STP, and fiber optic cables, suitable for mixed cable environments.
- Q: Does it optimize space inside the raceway? A: Yes. The radiused design and full-capacity interior are engineered to maximize space usage while maintaining reliable cable routing.
- Q: Is this elbow compatible with standard Wiremold systems? A: The elbow is designed to integrate with Wiremold 4000 series components, ensuring a consistent fit and reliable performance.
