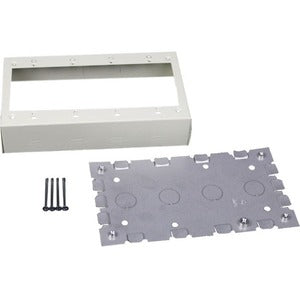

Wiremold 500/700 Four-Gang Switch and Receptacle Box Fitting

WiremoldSKU: 7101870

Price:
Sale price$85.09

Description

Wiremold 500/700 Four-Gang Switch and Receptacle Box Fitting

The Wiremold 500/700 Four-Gang Switch and Receptacle Box Fitting is engineered to simplify and enhance the installation of deep electrical devices in commercial and residential settings. Designed for modern data and power needs, this four-gang box fitting provides a reliable foundation for mounting deep switches and receptacles while maintaining a clean, professional appearance. Its thoughtful design addresses common installation challenges, offering flexibility, durability, and RoHS-compliant materials to meet stringent environmental standards. Whether you’re outfitting a conference room, office, classroom, or residence, this four-gang box ensures a snug, code-compliant fit that accommodates larger devices without compromising space or accessibility. The base features two 1/2" trade size knockouts, enabling straightforward conduit routing and simplified wiring runs. When your project requires more capacity, larger gang boxes are available by special order, giving you scalable options without sacrificing reliability. With precise dimensions of 4 5/8" in length and 8 11/32" in width (117mm x 212mm), this box fitting is optimized for a variety of standard configurations while leaving room for future upgrades or changes in device layout. A RoHS-compliant construction means you can deliver modern, eco-friendly installations that align with regulatory requirements and sustainability goals. In short, the Wiremold 500/700 Four-Gang Box Fitting blends functional versatility with sturdy performance, making it a dependable choice for professionals who demand quality and efficiency from their electrical fittings.

  • Designed specifically for deep switches and receptacles, allowing easier accommodations of larger devices without crowding the wall space.
  • Base includes two 1/2" trade size knockouts (KOs), enabling flexible wiring paths and simplified conduit connections for clean, code-compliant installations.
  • Four-gang configuration provides ample room for multiple devices in a single, organized enclosure, reducing the need for multiple boxes and improving installation efficiency.
  • RoHS-compliant materials ensure environmental responsibility and compliance with modern regulatory standards, helping you meet sustainability goals while delivering reliable performance.
  • Larger gang boxes are available by special order, offering scalable options to accommodate growing electrical needs or future device upgrades without sacrificing fit and finish.

Technical Details of Wiremold 500/700 Four-Gang Switch and Receptacle Box Fitting

  • Size and configuration: Four-gang footprint measuring 4 5/8" L x 8 11/32" W (117mm x 212mm).
  • Knockouts: Base provides two 1/2" trade size KOs for flexible wiring and conduit routing.
  • RoHS compliance: Material restrictions met to support environmentally responsible installations.
  • Availability: Larger gang boxes available by special order to accommodate varying device requirements.
  • Intended use: Optimized for deep switches and receptacles, enabling clean, professional mounting and wiring integration.

How to Install Wiremold 500/700 Four-Gang Box Fitting

  • Turn off power to the circuit at the main electrical panel and verify there is no live current in the work area.
  • Plan the layout and locate the mounting position, ensuring that the wall surface and backing provide solid support for the four-gang box and the devices you intend to install.
  • Route wiring through the two 1/2" trade size knockouts in the base, using appropriate connectors and maintaining proper clearance for deep switches and receptacles.
  • Mount the four-gang box to the wall or supporting surface, ensuring it is level and securely fastened to support the weight of the devices and cover plates.
  • Install the switches and receptacles into the four-gang cavity, connect the wiring per electrical code and device manufacturer instructions, and secure the devices with screws or mounting hardware.
  • Attach the appropriate cover plates and finish trims to achieve a clean, professional appearance, and recheck all connections and mounting for safety and reliability before restoring power.

Frequently asked questions

  • Q: Is the Wiremold 500/700 Four-Gang Box Fitting RoHS compliant? A: Yes. The product meets RoHS material restrictions, supporting eco-friendly and compliant installations.
  • Q: What are the exact dimensions of the four-gang box? A: The four-gang configuration measures 4 5/8" long by 8 11/32" wide (117mm x 212mm).
  • Q: How many knockouts does the base have and what size are they? A: The base includes two 1/2" trade size knockouts for flexible wiring options.
  • Q: Can I get a larger gang box if I need more space? A: Yes. Larger gang boxes are available by special order to accommodate additional devices or different layouts.
  • Q: What is the primary use of this box fitting? A: It is designed for deep switches and receptacles, making it ideal for installations requiring extra space behind devices while keeping a tidy, professional finish.
