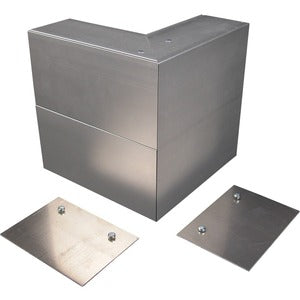

Wiremold ALA4800 Inverted Internal Elbow Fitting

The Wiremold ALA4800 Inverted Internal Elbow Fitting is engineered to complement the ALA4800 Series Isoduct Aluminum Raceway, delivering a premium, space-saving solution for routing power and communications cabling in demanding commercial environments. This inverted elbow fits seamlessly into two-channel, dual-cover aluminum raceways, helping facilities maintain a clean, professional aesthetic while preserving cable performance. Ideal for laboratories, healthcare facilities, and upscale office settings, it combines durability, ease of installation, and flexible routing to meet the needs of modern interiors.

• Premium two-channel, dual-cover aluminum raceway design: The ALA4800 system provides a discreet, organized home for power and data cabling, enabling tidy runs along walls, under desks, and through equipment alcoves. Its dual-cover design offers quick access for maintenance while keeping cables protected and out of sight, contributing to a polished, professional interior.
• Inverted internal elbow for tight turns and space savings: The inverted elbow geometry enables smooth routing around corners with minimal footprint, reducing the risk of cable kinks and stress. This design is especially advantageous in dense installations where space behind equipment or along tight corridors is at a premium.
• Durable aluminum construction designed for commercial environments: The Isoduct ALA4800 raceway uses rugged aluminum to withstand daily wear in laboratories, healthcare settings, and busy office spaces. The material resists dents and corrosion, helping maintain performance and appearance over time in high-traffic areas.
• Easy installation with modular, compatible components: The ALA4800 system is designed for straightforward assembly. The inverted internal elbow fits neatly into the two-channel raceway, allowing quick corner transitions and minimal disruption during retrofits or new builds. The dual-cover design enables rapid access for inspections or upgrades without disturbing installed cables.
• Aesthetically pleasing and safety-focused: The sleek, low-profile profile of the ALA4800 raceway complements modern interiors while helping meet common electrical and data-cabling safety requirements. It provides organized cabling that enhances both functionality and the visual appeal of commercial spaces.

Technical Details of Wiremold ALA4800 Inverted Internal Elbow Fitting

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to Install Wiremold ALA4800 Inverted Internal Elbow Fitting

To ensure a secure, code-compliant installation, follow these steps that align with standard practices for the ALA4800 Isoduct Aluminum Raceway system:

• Plan the route: Determine the exact path for the two-channel raceway, identifying where an inverted internal elbow will be required to navigate corners or obstacles. Measure lengths to minimize joints and ensure clean transitions.
• Prepare the mounting surface: Power down applicable circuits and verify electrical safety. Clean and prepare walls or mounting surfaces to receive raceway supports, ensuring a solid anchor for long-term stability.
• Assemble raceway sections: Cut the Isoduct Aluminum Raceway to length, and fit sections together according to the system’s alignment features. Confirm that channels are clean and free of burrs that could damage cables.
• Install the inverted internal elbow: Place the elbow at the planned corner, ensuring it aligns precisely with the two-channel raceway. Secure using the recommended fasteners and verify that there is no gap between components that could compromise cable protection.
• Route cables and seal: Insert power and data cables into the two channels, keeping bend radii within recommended tolerances to protect wire integrity. Install the dual-cover over the raceway, ensuring a snug fit that conceals cables and provides easy access for future maintenance.
• Finalize and test: Reconnect power where applicable and perform a functional test of connected devices. Inspect for any visible gaps, ensure the elbow and raceway remain securely fixed, and confirm that the installation meets local electrical and safety codes.

Frequently Asked Questions

• What is the Wiremold ALA4800 Inverted Internal Elbow Fitting used for? It is part of the ALA4800 Isoduct Aluminum Raceway system and is designed to create smooth, space-saving 90-degree turns for two-channel power and data cable runs, helping to maintain a clean installation in commercial settings.
• Where is the ALA4800 best suited? It is ideal for laboratories, healthcare facilities, and upscale offices where durable cable management and a refined aesthetic are important conjunctions of form and function.
• Is the ALA4800 compatible with other ALA4800 components? Yes, the inverted internal elbow is designed to integrate with the ALA4800 Isoduct Aluminum Raceway family, enabling cohesive, scalable installations.
• What materials are used? The system uses aluminum for the raceway and a dual-cover design to conceal cables while providing robust protection against wear and environmental challenges typical of commercial environments.
