Description

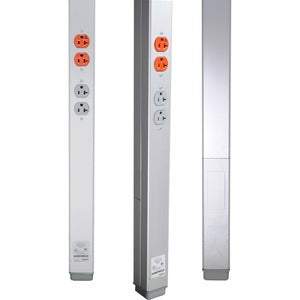

Wiremold AMDTP-4D - AMDTP-4 Series Aluminum Tele-Power Pole
Discover a robust, clean solution for power and communications in one sleek aluminum pole. The Wiremold AMDTP-4D is designed for installations where a dedicated, organized channel for electrical and data connections is essential. This two-compartment pole keeps power and data separate for safety and performance, while maintaining a streamlined appearance in offices, conference rooms, retail spaces, and industrial environments. Built to withstand daily use, the AMDTP-4D combines durable construction with thoughtful routing options so you can place outlets where you need them most without sacrificing style or accessibility.
Designed with versatility in mind, the AMDTP-4D supports modern workspaces that demand reliable power alongside uninterrupted data connectivity. The two-compartment arrangement minimizes interference between power and communications lines, making it ideal for conference setups, classrooms, or open-plan offices where devices proliferate. The aluminum body delivers a lightweight yet sturdy frame that resists wear and deformation, while the precise.050" (1.8 mm) nominal thickness provides a balanced profile that blends with contemporary interiors. Whether you’re outfitting a new building or upgrading an existing installation, the AMDTP-4D delivers a professional, code-compliant solution that aligns with most commercial electrical and data standards.
- Two-compartment design for power and communications: A dedicated, compartmentalized pole eliminates cross-talk and clutter, making it easier to manage outlets, cables, and data lines in busy spaces.
- Rugged aluminum construction with precise thickness: Nominal material thickness.050" (1.8 mm) provides a sturdy yet lightweight profile resistant to wear while remaining easy to install.
- Generous length for versatile layouts: At 10' 5" (3.2 m), the AMDTP-4D accommodates multiple receptacles and data connections along large walls or aisles, reducing the need for additional power drops.
- Factory-wired receptacles for immediate use: The pole ships with one 20A 125V dedicated/isolated ground duplex receptacle and one standard 20A 125V duplex receptacle, ensuring reliable power distribution out of the box.
- Convenient openings for power and data: An opening for communications and a 1/2" (12.7 mm) hole for power simplify integration with data systems and electrical feeds in a single elegant unit.
Technical Details of Wiremold AMDTP-4D
- Pole type: Two-compartment pole (power and communications).
- Material: Aluminum with nominal thickness 0.050" (1.8 mm).
- Length: 10' 5" (3.2 m).
- Electrical configuration: Factory wired with one 20A 125V dedicated/isolated-ground duplex receptacle and one standard 20A 125V duplex receptacle.
- Openings: Opening for communication and a 1/2" (12.7 mm) hole for power.
How to install Wiremold AMDTP-4D
Installing the AMDTP-4D is straightforward for installers familiar with commercial electrical and data installations. Begin by planning the route of the pole along the chosen wall or service area, taking into account accessibility, traffic flow, and the locations of nearby devices that will connect to the receptacles or communication openings. Because the AMDTP-4D is factory-wired for power and data, you’ll benefit from reduced on-site wiring while still following local electrical codes and standards. Ensure you have the appropriate mounting hardware for your wall type and verify that the surface can support the pole and any attached devices over the long term.
- Step 1: Inspect packaging and contents for completeness. Confirm that the two receptacles, openings for communication, and power access are present and undamaged.
- Step 2: Choose secure mounting locations. Attach the pole to a solid surface using appropriate hardware for your wall material, ensuring alignment with the planned outlets and openings. If mounting to studs or a structural member, use screws that provide adequate support for the weight and anticipated load.
- Step 3: Mount the pole. With assistance, position the AMDTP-4D along the planned route and fasten it securely, ensuring the 1/2" power hole and the communications opening align with nearby conduits or data lines.
- Step 4: Route and secure cables. For data or communications cables, thread them through the communications opening and route them to devices as needed. The 1/2" power hole is designed to accommodate power feeds; ensure any electrical connections are per code and that the factory-wired receptacles remain correctly grounded.
- Step 5: Verify functionality. After mounting and routing, test both duplex receptacles to confirm voltage and grounding integrity. Confirm the dedicated isolated-ground receptacle remains correctly isolated and that the standard receptacle provides reliable power to connected devices.
- Step 6: Finalize and label. Tidy up any excess cabling, install any required faceplates or covers, and label the installation to aid future maintenance and upgrades.
Frequently asked questions
-
Q: What is the Wiremold AMDTP-4D?
A: The AMDTP-4D is the AMDTP-4 Series Aluminum Tele-Power Pole, a two-compartment pole designed to house power and communications outlets in a single, organized unit.
-
Q: What are the key dimensions and materials?
A: It features aluminum construction with a nominal thickness of.050" (1.8 mm) and a total length of 10' 5" (3.2 m).
-
Q: What electrical outlets are included?
A: The product is factory-wired with one 20A 125V dedicated/isolated-ground duplex receptacle and one standard 20A 125V duplex receptacle, offering robust power distribution for devices that require separate grounding.
-
Q: Are there openings for power and data?
A: Yes. The AMDTP-4D includes an opening for communications and a 1/2" (12.7 mm) hole for power, enabling straightforward integration with data networks and electrical feeds.
-
Q: Is installation difficult?
A: Installation is straightforward with basic mounting tools and proper anchoring to a solid structure. The factory-wired receptacles simplify setup by reducing on-site wiring requirements while maintaining safe, code-compliant connections.
