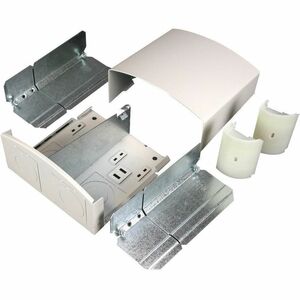

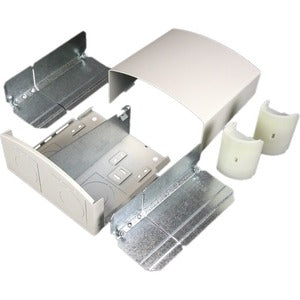

Wiremold DS4000 Entrance-End-Fitting

WiremoldSKU: 7100476

Price:
Sale price$78.78

Description

Wiremold DS4000 Entrance-End-Fitting

The Wiremold DS4000 Entrance-End-Fitting is a high-capacity entry point for professional cable management systems, engineered to deliver clean, organized wiring with maximum productivity. This end fitting supports multiple cable configurations, featuring four 3/4" and 1 1/4" concentric trade size KOs and four 2 1/8" large capacity KOs, enabling dependable power, data, AV, and communications wiring through the DS4000 raceway framework. Designed for commercial environments where reliability, ease of installation, and ongoing maintenance matter, the DS4000 Entrance-End-Fitting ensures a clutter-free entry with clear connectivity and minimal service interruptions. Whether you’re outfitting an office, retail space, or hospitality project, this end fitting helps you achieve professional-looking, code-compliant wire management with the durability and performance Wiremold customers expect.

  • Flexible KO configurations for versatile entry points The DS4000 Entrance-End-Fitting includes four 3/4" and 1 1/4" concentric trade size KOs plus four 2 1/8" large capacity KOs, giving you a wide range of cable entry options to accommodate varied load requirements and future upgrades without replacing the end fitting.
  • Full-capacity performance for high-volume installations This end fitting is designed to handle a significant flow of cables while preserving organization and easy access. By consolidating multiple entry points into a single, well-structured end, it minimizes congestion and reduces the risk of wire damage or tangling during installation and ongoing maintenance.
  • Clear connectivity and reliable wire management The DS4000 End Fitting emphasizes clean pathways and predictable cable routing; it helps technicians route power, data, and AV cables with confidence, supporting strict organizational standards and safer, neater installations across commercial spaces.
  • Durable, professional-grade construction Built to endure daily use in busy environments, this end fitting integrates seamlessly with Wiremold systems. Its robust design promotes long service life, making it a trustworthy component for project total cost of ownership and maintenance planning.
  • Seamless integration with Wiremold systems for maximum productivity The DS4000 Entrance-End-Fitting is purpose-built to work with Wiremold raceways and accessories, ensuring quick installation, consistent fit, and uninterrupted workflow for electricians and installers while delivering a polished, professional finish.

Technical Details of Wiremold DS4000 Entrance-End-Fitting

  • Full-capacity end fitting designed for high-volume cable entries
  • Concentric trade size KOs: four openings combining 3/4" and 1 1/4" capacity
  • Large capacity KOs: four openings sized at 2 1/8" for bulk cable entries
  • End Fitting cable manager type optimized for clear connectivity and organized routing
  • Compatible with DS4000 system components to maintain consistent performance and aesthetics

How to install Wiremold DS4000 Entrance-End-Fitting

Installing the DS4000 Entrance-End-Fitting is straightforward when you follow these general guidelines. Always ensure you are working with the correct DS4000 components for your project and that power is secured according to local electrical codes before beginning any wiring work. Plan the KO usage to match current needs while allowing for possible future expansion, and verify that the mounting surface is clean, flat, and capable of supporting the end fitting under typical loading conditions. The following steps outline a practical approach to installation that supports efficient wiring and a professional finish.

  • Power down the routed circuit and confirm compatibility with your Wiremold raceway configuration before handling any cables.
  • Determine the optimal KO layout by referencing the four 3/4" and 1 1/4" concentric trade size KOs and the four 2 1/8" large capacity KOs to balance cable entry and space for future expansions.
  • Position the DS4000 Entrance-End-Fitting at the entrance of the raceway run, aligning mounting holes with the raceway’s structural features to ensure a secure, flush fit.
  • Secure the end fitting using manufacturer-recommended fasteners, ensuring screws are tightened evenly and the unit sits square against the surface to prevent gaps or misalignment.
  • Route cables through the selected KO openings, keeping run lengths tidy and organized. Use proper strain relief and cable management practices to protect wires from abrasion and interference.
  • Inspect the installation for clearance, verify that no cables are kinked or pinched, and complete a functional check with power off before energizing the circuit.

Frequently asked questions

  • What KO openings are included with the DS4000 Entrance-End-Fitting? The DS4000 Entrance-End-Fitting provides four 3/4" and 1 1/4" concentric trade size KOs along with four 2 1/8" large capacity KOs to accommodate a variety of cable entry needs.
  • Is the DS4000 Entrance-End-Fitting compatible with other Wiremold systems? Yes. It is designed to integrate with Wiremold DS4000 raceways and related accessories, ensuring consistent performance, fit, and connectivity across the system.
  • Can this end fitting handle high-density cable runs? Yes. Its full-capacity design supports multiple cables entering the end point, helping maintain organized pathways and reducing clutter even in demanding installations.
  • What installation considerations should I keep in mind? Ensure you follow local electrical codes, plan KO usage for current and future needs, verify mounting surface integrity, and route cables with care to avoid damage.
  • Where can I find more technical specifications? Technical details and compatibility information are available through Wiremold’s DS4000 product documentation and the manufacturer’s installation guides for precise measurements and requirements.
