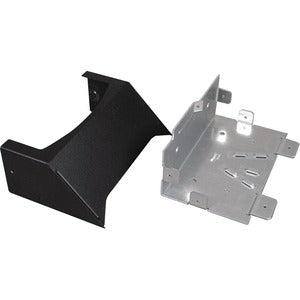

Wiremold OFR Series Overfloor Raceway DS4000 Transition

The Wiremold OFR Series Overfloor Raceway DS4000 Transition is a pivotal accessory designed to seamlessly bridge DS4000 vertical runs with the OFR overfloor channel. This transition piece unlocks effortless cable routing, helping offices, data centers, classrooms, and commercial spaces maintain a clean, professional aesthetic while meeting today’s stringent safety and performance standards. With a removable divider that can be repositioned to feed any raceway channel, installers gain unmatched flexibility to adapt layouts as needs evolve. RoHS-compliant by design, it supports responsible cable management without sacrificing reliability or ease of installation. Whether you’re retrofitting an existing installation or laying out a new system, this transition provides a dependable, organized pathway for power, data, and AV wiring from ceiling to floor, reducing clutter and minimizing the risk of cable damage in high-traffic environments.

• Seamless integration between DS4000 vertical runs and the OFR overfloor raceway, delivering a continuous, tidy cable management path from ceiling to floor.
• Removable, repositionable divider that can be aligned to feed any raceway channel, enabling precise routing around obstacles and future reconfigurations.
• RoHS-compliant material design, prioritizing safety and environmental responsibility while maintaining durable performance in busy spaces.
• Space-efficient, low-profile profile that maximizes available channel capacity without compromising access or maintenance visibility.
• Easy installation with a modular approach that reduces installation time, minimizes downtime, and delivers a neat, secure upgrade for both retrofits and new builds.

Technical Details of Wiremold OFR Series Overfloor Raceway DS4000 Transition

• Compatibility: Specifically designed to connect DS4000 Series Raceway with OFR Series Raceway, offering a streamlined path between vertical DS4000 runs and overfloor channels.
• Removable divider: Includes a divider that can be repositioned to feed any raceway channel, enabling flexible cable routing across complex layouts.
• RoHS compliance: Meets RoHS material restrictions, supporting safe, eco-conscious installations.
• Application: Intended for overfloor installation to elevate and organize cables while maintaining accessibility for maintenance and future changes.
• Installation footprint: Designed for quick snap-in or clip-in engagement with existing Wiremold components, reducing the need for invasive modification.
• Durability and reliability: Built to perform in high-traffic environments, providing stable alignment and long-term cable management solutions.

How to install Wiremold OFR Series Overfloor Raceway DS4000 Transition

Step 1: Begin by planning the route that will connect the DS4000 vertical run to the OFR overfloor channel. Verify compatibility of the DS4000 and OFR components in your layout and identify any obstacles or special access points that may influence divider positioning.

Step 2: Position the DS4000-to-OFR transition at the junction where the vertical DS4000 path meets the overfloor channel. Hold the transition in place to confirm alignment, clearance, and cable entry points before finalizing placement.

Step 3: Remove or adjust the included divider as needed. The divider is designed to be repositioned to direct cables into the desired channel; slide, snap, or lock it into the preferred position to optimize feed paths and minimize bending radii.

Step 4: Secure the transition piece into the raceway system according to your installation method (clip-in, snap-on, or other supported engagement). Ensure a snug, vibration-free fit to prevent movement that could impact cable integrity or channel alignment.

Step 5: Route cables through the transition, verify smooth curvature with no sharp bends, and finalize with any cover plates, gaskets, or covers that accompany your OFR and DS4000 components. After wiring, perform a quick functional check to confirm clear access and proper cable management across the complete run.

Frequently asked questions

• Q: What does the Wiremold OFR DS4000 Transition do? A: It provides a dependable connection between DS4000 Series vertical runs and the OFR Series overfloor raceway, with a removable divider that can be repositioned to feed any channel path for flexible, clean cable routing.
• Q: Is this product RoHS compliant? A: Yes. The transition meets RoHS material restrictions, aligning with safety and environmental guidelines for modern installations.
• Q: Does the transition include a divider? A: Yes, it includes a removable divider that can be repositioned to direct cables into the preferred raceway channel.
• Q: Which raceways are compatible? A: It is designed to connect DS4000 Series Raceway with OFR Series Raceway, enabling overfloor installations with consistent cable management.
• Q: How should I install the transition? A: Follow the step-by-step guidance in the How to install section above for alignment, divider positioning, and secure engagement, then verify operation and cable routing.
