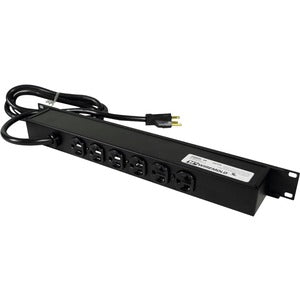

Wiremold Rack Mount 120V/20A PDU with Built-In Ammeter – 6 x NEMA 5-20R, 6' Cord, 1U Rack-Mountable

Power reliability and real-time monitoring are essential for any professional rack environment. The Wiremold Rack Mount 120V/20A Power Distribution Unit (PDU) delivers a compact, space-saving solution that fits neatly into standard 19-inch racks. With six NEMA 5-20R outlets, a six-foot cord, and a built-in ammeter, this 1U PDU provides convenient access to clean, consistent electrical power while giving you immediate visibility into current draw. Designed for performance, durability, and ease of integration, this Wiremold PDU is an ideal choice for data centers, audio-visual setups, studios, labs, and other mission-critical installations where power reliability and monitoring matter.

• Six NEMA 5-20R outlets for versatile power distribution to servers, switches, routers, and peripheral equipment.
• Input plug and connector optimized for reliable connectivity with NEMA L5-20P / 5-20P configurations, ensuring secure and efficient power delivery.
• Built-in ammeter provides real-time current monitoring, enabling proactive load management and energy planning for improved uptime and efficiency.
• 1U rack-mountable design occupies minimal space in professional racks, helping you maximize available rack space without sacrificing accessibility.
• TAA compliant for federal, state, and corporate procurement, ensuring compatibility with government and enterprise purchasing requirements.

Technical Details of Wiremold Rack Mount 120V/20A/6 Rear O/L /6' Cord/Built In Ammeter

• Voltage: 120 VAC
• Current rating: 20 A
• Outlets: 6 x NEMA 5-20R receptacles
• Input plug/connector: NEMA L5-20P / 5-20P (configurations may vary by model)
• Cord length: 6 feet
• Form factor: 1U rack-mountable
• Built-in ammeter: real-time current monitoring for total load
• Overload protection: designed with rear overload (O/L) indicators and protections to help prevent equipment damage
• Construction: rugged enclosure suitable for dense rack environments
• Compliance: TAA compliant for government and enterprise procurement

how to install Wiremold Rack Mount 120V/20A/6 Rear O/L /6' Cord/Built In Ammeter

• Prepare your rack space: Ensure your rack has standard 19-inch mounting rails and that there is at least 1U of vertical space available where the unit will be installed.
• Mount the PDU: Align the PDU with the rack rails and secure it using the appropriate screws for your rack depth and rail type. Confirm the unit sits firmly and does not wobble.
• Connect to power: Route the 6-foot cord to a suitable 120V power source that matches the input plug configuration (NEMA L5-20P / 5-20P as specified). Ensure the outlet is properly grounded and rated for the load you expect to place on the PDU.
• Load assignment: Connect your devices to the six NEMA 5-20R outlets, grouping critical equipment toward the most accessible outlets. Distribute the load to prevent overloading any single circuit and consider balancing high-draw devices across outlets.
• Verify operation: Power on the rack and verify that each connected device powers correctly. Check the built-in ammeter reading to confirm the total load is within safe operating limits. If any overload indicators are present, take corrective action by redistributing devices or reducing load.

Frequently asked questions

• What is the primary purpose of this Wiremold rack-mount PDU? It provides centralized power distribution for rack-mounted equipment, featuring six NEMA 5-20R outlets, a six-foot cord, and a built-in ammeter for real-time current monitoring.
• How many outlets does it have? The unit includes 6 NEMA 5-20R receptacles for powering multiple devices from a single centralized power source.
• What plug type does it use? The PDU is configured with a NEMA L5-20P / 5-20P input plug/connector, offering secure and reliable power connection options depending on regional configurations and installation requirements.
• Is it compliant with procurement standards? Yes, it is TAA compliant, making it suitable for government procurement and enterprise purchasing programs.
• Does it include a built-in ammeter? Yes, the unit features a built-in ammeter for real-time current monitoring, helping you track load and optimize energy usage across connected devices.
• What is the form factor? The PDU is designed to fit in a standard 1U rack space, allowing efficient use of vertical rack real estate while keeping outlets accessible.
• Can I rely on this for critical equipment? The design emphasizes reliability and monitoring. While it provides robust power distribution, always ensure proper load balancing and adhere to electrical codes and safety guidelines for your environment.
