Wiremold RC4 Multi-Service Poke-Thru Assembly, Brass

WiremoldSKU: 7101217

Price:
Sale price$424.14

Description

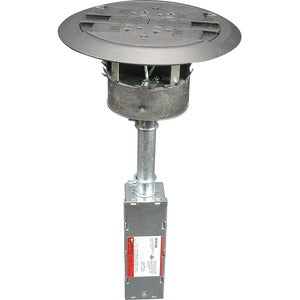

Wiremold RC4 Multi-Service Poke-Thru Assembly, Brass

Upgrade your power distribution with the Wiremold RC4 Multi-Service Poke-Thru Assembly in Brass, a premium solution engineered for high-traffic spaces that demand both reliability and refined aesthetics. This four-receptacle poke-thru sits neatly in floor or deck openings, delivering safe, code-compliant access to power precisely where it’s needed. Each duplex receptacle is prewired as a separate circuit, allowing independent control and reduced risk of overload across devices. The RC4’s brass finish brings a sophisticated look that complements upscale interiors, executive offices, conference rooms, and modern educational environments. Choose from an array of flange finishes—gray (GY), black (BK), ivory (VY) or brushed metal options in aluminum (AL) and brass (BS)—to seamlessly blend with existing trim or design language. With the option to wire each duplex as a standard receptacle or isolated ground, this unit balances performance and noise reduction for sensitive electronics while maintaining rugged, everyday durability.

  • Four prewired 20A receptacles; each duplex is wired as a separate circuit for dedicated power distribution across devices.
  • Isolated-ground option available: configure each duplex as isolated-ground receptacles to minimize electrical noise and interference for sensitive equipment.
  • Finish flange versatility: choose from gray (GY), black (BK), ivory (VY) or brushed metal finishes in aluminum (AL) and brass (BS) to match décor and branding.
  • Poke-thru design for floor or deck installations: designed to fit standard openings, with secure mounting, sealing, and a clean, professional appearance.
  • Durable construction and compatibility: robust metal enclosure with brass finish; UL-listed components engineered for commercial environments and high-traffic use.

Technical Details of Wiremold RC4 Multi-Service Poke-Thru Assembly, Brass

  • Configuration: RC4 Multi-Service Poke-Thru Assembly with four duplex receptacles, each on a separate circuit
  • Electrical rating: 125V, 20A per receptacle
  • Wiring options: four prewired receptacles; isolated-ground option available for enhanced signal integrity
  • Finish and trim: Brass (BS) enclosure with optional flange finishes in gray (GY), black (BK), ivory (VY) or brushed aluminum (AL); brass variant provides premium aesthetics
  • Enclosure and materials: heavy-duty metal construction with corrosion-resistant brass finish for durable performance in busy environments
  • Installation orientation: floor or deck poke-thru installation compatible with standard openings; includes required mounting hardware and seals for a tight fit
  • Compliance: designed for commercial use with appropriate electrical safety certifications and listings

how to install Wiremold RC4 Multi-Service Poke-Thru Assembly

  • Step 1 — Plan and power down: Identify the installation location, verify floor opening dimensions per manufacturer guidelines, and shut off power to the circuit(s) that will feed the RC4 unit. Confirm that the surrounding structure can support the poke-thru assembly and that any required floor seals or gaskets are available.
  • Step 2 — Prepare the opening: Create or verify the floor cutout to match the RC4’s recommended dimensions. Clean the opening of debris and ensure a flat, stable surface so the enclosure seats evenly and the flange sits flush with the floor plane.
  • Step 3 — Wire per configuration: If using the isolated-ground option, route a dedicated IG conductor to the isolated-ground terminals of each receptacle; otherwise connect each hot (live), neutral, and equipment ground according to local code and the RC4 wiring diagram. Keep conductors organized to avoid stress on terminations and preserve the unit’s wiring integrity.
  • Step 4 — Install the assembly: Insert the RC4 into the opening, align with the mounting points, and secure using the supplied screws or mounting hardware. Attach the finish flange in the desired color, seal as required, and verify that the receptacles align properly with the finish face for a clean, professional appearance.
  • Step 5 — Test and finalize: Restore power and test each receptacle with a tester to confirm correct voltage and independent circuit operation. If isolated-ground wiring was used, verify IG continuity and proper isolation from standard grounds. Install any optional faceplates or covers as specified by your project requirements.

Frequently asked questions

  • Q: What is the Wiremold RC4 Multi-Service Poke-Thru Assembly, Brass?
    A: It is a four-receptacle poke-thru unit designed to bring multiple power outlets through a floor or deck opening. Each duplex receptacle can operate on its own circuit and can be wired as a standard or isolated-ground outlet, providing flexible power distribution with a premium brass finish.
  • Q: How many circuits does the RC4 support?
    A: The RC4 supports four separate circuits, one for each duplex receptacle, enabling dedicated power for individual devices or groups of devices as needed in busy spaces.
  • Q: Can the receptacles be wired as isolated-ground outlets?
    A: Yes. The RC4 offers an isolated-ground wiring option to minimize electrical noise and interference for sensitive equipment, which is especially beneficial in conference rooms, labs, and AV setups.
  • Q: What finishes are available for this poke-thru?
    A: The RC4 in Brass (BS) is the focus here, with flange options in gray (GY), black (BK), ivory (VY) and brushed metal finishes in aluminum (AL) and brass (BS) to coordinate with décor.
  • Q: Is the RC4 suitable for commercial environments?
    A: Yes. It is built for high-traffic, commercial settings and uses UL-listed components designed to meet safety and performance standards for office, educational, and hospitality spaces.
  • Q: What installation considerations should I keep in mind?
    A: Ensure the opening size matches the unit’s specifications, power is shut off during installation, wiring follows local codes, and the mounting hardware is correctly secured to provide a flush, stable finish with appropriate seals to prevent dust and moisture ingress.
