Description

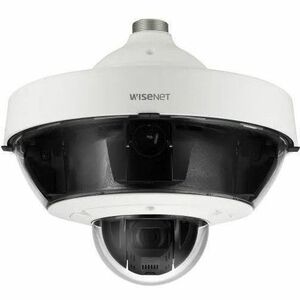

The Wisenet PNM-9322VQP is a premium 20 Megapixel network camera designed for high-demand surveillance environments where detail, reliability, and versatility matter. Boasting a sharp 2560 x 1920 resolution and a fluid 60 fps, this color camera captures clear, life-like imagery that supports precise identification and rapid decision-making. Built to withstand the rigors of harsh conditions, it combines rugged durability with sophisticated compression and connectivity options to deliver dependable performance in both indoor and outdoor deployments. With TAA compliance and a sleek white housing, the PNM-9322VQP blends enterprise-grade capability with government procurement standards, making it a versatile choice for retail, transportation, education, finance, and critical infrastructure projects.
- Ultra-high resolution with smooth motion: Capture incredibly rich detail at 2560 x 1920 with a maximum 60 frames per second. This exceptionally sharp image quality supports accurate facial recognition, detailed crowd analytics, and precise license plate reading, even in dynamic scenes or low-light conditions when paired with Wisenet’s advanced processing features.
- Rugged construction for demanding environments: Engineered for longevity, the camera features IK10 vandal resistance and IP66 weatherproofing. This combination protects against vandal attempts and exposure to dust, rain, and temperature extremes, making it suitable for exterior façades, transit hubs, parking facilities, and outdoor campuses.
- Advanced compression and flexible video streams: Supports multiple codecs including H.265, H.264, and MJPEG, with substreams optimized for bandwidth savings without compromising essential image quality. Variant profiles such as H.265M, H.265H, H.264M, H.264H, H.265B, and H.264B provide adaptable quality and bandwidth balance for diverse networks and storage environments.
- Power, connectivity, and uplink versatility: HPoE (IEEE 802.3bt) with Class 8, Type 3 injection included ensures up to higher-wattage power delivery over a single Ethernet cable. An onboard Fast Ethernet port plus an SFP port enables flexible uplinks—copper, fiber, or hybrid networks—perfect for scalable deployments in large campuses or city-wide surveillance.
- Versatile mounting options and professional design: With desk and wall mounting capabilities, a compact form factor, and a professional white enclosure, the PNM-9322VQP is easy to install in a range of spaces—from control rooms to storefronts—while maintaining a discreet and reliable surveillance presence.
Technical Details of Wisenet PNM-9322VQP
- Model: Wisenet PNM-9322VQP
- Resolution: 2560 x 1920 (20 Megapixel)
- Frame rate: Up to 60 fps
- Sensor: CMOS image sensor
- Video codecs: H.265, H.264, MJPEG; includes sub-profile options H.265M/H.265H/H.265B and H.264M/H.264H/H.264B
- Color: Color camera in white housing
- Compression and streams: Multi-stream capabilities with adaptable bitrates for bandwidth optimization
- Connectivity: Fast Ethernet (RJ-45) and an SFP port for fiber or copper uplinks
- Power: HPoE (IEEE 802.3bt), Class 8, Type 3; injector included
- Protection: IP66 weatherproof rating for complete exterior resilience
- Durability: IK10 vandal resistance
- Mounting: Desk mount and wall mount compatibility
- Standards: TAA compliant for procurement and government use
how to install Wisenet PNM-9322VQP
Installing the Wisenet PNM-9322VQP begins with planning a location that maximizes coverage while ensuring power availability and network access. Start by identifying a stable mounting surface with a clear field of view that minimizes potential obstructions. Consider environmental factors such as direct sunlight, wind exposure, and potential sources of glare that may affect image quality. The HPoE power option simplifies cabling by delivering both power and data over a single Ethernet connection, but you may also opt to use the injector provided for systems without HPoE support.
Step-by-step guidance to a successful deployment:
- Prepare the mounting hardware: Ensure you have the appropriate bracket, screws, and anchors for the surface (wall or desk/mount plate) and confirm load-bearing capacity for outdoor installations.
- Mount the camera: Attach the mounting bracket to the chosen surface, secure the camera, and verify that the device sits level and stable. Route cables through protective conduits as required by local codes and weather exposure.
- Connect power and data: If using HPoE, connect the injector and the camera to a compatible PoE switch or injector-enabled outlet. If using traditional PoE or separate power, connect accordingly, ensuring correct polarity and securing all connectors to minimize movement.
- Establish network uplink: Connect the camera to the network via Fast Ethernet or the SFP port for fiber. Verify link status and ensure proper IP configuration, either via DHCP or a static IP in your surveillance management system.
- Configure camera settings: Access the camera’s web interface or your VMS integration to configure resolution, frame rate, bitrate, and compression (choose H.265 or H.264 based on bandwidth constraints). Enable features such as WDR, defog, low-light mode, motion detection, and privacy masks as needed for your site.
- Focus and framing: Adjust focus (if required) and frame the area of interest. Use test footage to fine-tune exposure, white balance, and shutter speed for consistent day/night performance.
- Security hardening: Change default credentials, enable TLS/HTTPS where supported, and apply regular firmware updates from the vendor to preserve security and performance. Document IP addresses and access credentials in a secure system for future maintenance.
- Testing and hand-off: Perform functional tests including motion events, day/night transitions, and remote access from the intended monitoring station. Confirm that streams are accessible, stable, and aligned with your recording policies and retention requirements.
The installation process is designed to minimize downtime and deliver a resilient surveillance solution. The PNM-9322VQP’s rugged design, combined with HPoE power delivery and flexible networking options, makes it an ideal choice for sites requiring reliable, scalable, and high-detail video capture without compromising on network efficiency or manageability.
Frequently asked questions
- What resolution does the Wisenet PNM-9322VQP provide? It delivers a native resolution of 2560 x 1920 (20 Megapixel) with a maximum frame rate of 60 fps, enabling exceptionally clear and smooth surveillance footage for detailed analysis and rapid identification.
- Does this camera support PoE power? Yes. The PNM-9322VQP supports HPoE (IEEE 802.3bt), Class 8, Type 3 power delivery, and an injector is included, simplifying power provisioning over Ethernet for streamlined installations.
- Is the camera weatherproof and vandal-resistant? Absolutely. It features IP66 weatherproofing to withstand rain, dust, and harsh outdoor conditions, along with IK10 vandal resistance to deter tampering and protect critical deployments.
- What mounting options are available? The camera is designed for desk mount and wall mount installations, offering versatile placement in offices, retail spaces, and outdoor environments where space and aesthetics matter.
- What kind of video codecs does it support? The camera supports H.265, H.264, and MJPEG, including multiple profile variants (H.265M/H.265H/H.265B and H.264M/H.264H/H.264B) to optimize bandwidth and storage while preserving image quality across different network conditions.
- Is the Wisenet PNM-9322VQP compliant with government procurement standards? Yes. It is TAA compliant, making it suitable for government and other regulated procurement scenarios.
- What kind of uplink options are available? The camera provides both Fast Ethernet and an SFP port, enabling copper or fiber uplinks and allowing scalable networks across campuses or facilities.
- Can I customize the video streams for different applications? Yes. With multi-stream capabilities and flexible bitrate control, you can tailor streams for live monitoring, playback, and storage efficiency, ensuring optimal performance for each application.
