Description

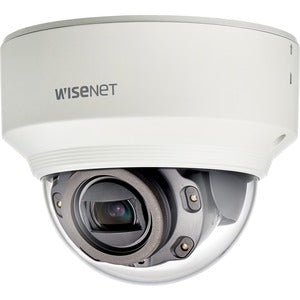

Discover a compact, high-performance indoor dome that blends next‑level imaging with smart analytics and efficient data management. The Wisenet XND-6080RV is a 2MP indoor vandal dome camera designed to deliver crisp Full HD video in a variety of lighting conditions. Powered by Wisenet 5, it combines advanced optics, flexible mounting, and reliable analytics to support effective surveillance in retail, offices, and other indoor environments. With a motorized vari-focal lens, wide dynamic range, and WiseStream II compression, this camera is built to capture clear, actionable footage while helping you manage bandwidth and storage. Whether you need precise facial details in a shop, or broad area coverage in an office lobby, the XND-6080RV is engineered to perform with consistency and ease.
- 2MP Full HD (1080p) capture at up to 60fps when WDR is off, with 1080p at 30fps when WDR is on, ensuring smooth playback and clear motion in dynamic scenes.
- Motorized Vari-Focal Lens 4.3x (2.8–12mm) delivering flexible field of view from a broad 119.5° to a tight 27.9°, allowing precise framing for both wide-area and focused surveillance.
- H.265/H.264/MJPEG video streaming with WiseStream II compression technology to optimize bandwidth and storage without sacrificing image quality.
- 150dB WDR for challenging lighting, plus network IR for reliable indoor night imaging and clear details in low-light conditions.
- USB port for quick installation and firmware updates, along with advanced video analytics to support smarter alerts and security insights.
Technical Details of Wisenet XND-6080RV
- Model: Wisenet XND-6080RV
- Image sensor: 2 MP (Full HD 1080p)
- Frame rate: 60fps at 1080p when WDR is off; 30fps at 1080p when WDR is on
- Wide dynamic range: 150 dB
- Lens: Motorized Vari-Focal 4.3x (2.8–12mm)
- Field of view: 119.5° (widest) to 27.9° (telephoto)
- Video formats: H.265, H.264, MJPEG
- Video analytics: Advanced analytics for smarter alerts and security insights
- Compression: WiseStream II
- Lighting: Network IR for indoor night imaging
- Housing: Indoor vandal dome
- Interface: USB port for installation and updates
- Platform: Wisenet X powered by Wisenet 5
how to install Wisenet XND-6080RV
Step 1: Plan the installation location. Choose an indoor area that offers a clear line of sight to the desired coverage, taking advantage of the camera’s wide 119.5° to 27.9° field of view. Consider mounting height, potential glare, and access to the USB port for future updates.
Step 2: Mount the dome. Use the included mounting hardware designed for indoor use. Secure the base to a sturdy surface, ensuring the camera is oriented to cover the intended area. Take care to avoid obstructing the vari-focal lens path during installation.
Step 3: Connect power and network. Attach the camera to a reliable power source and network connection. If your system supports Power over Ethernet (PoE), you can streamline installation by delivering both data and power over a single cable, reducing clutter and simplifying maintenance.
Step 4: Configure the device. Access the camera through your NVR or web client to configure resolution, frame rate, WDR settings, and privacy masking as needed. Enable WiseStream II to balance image quality with bandwidth efficiency and set up motion or analytics-based alerts for smarter monitoring.
Step 5: Fine-tune the image. Use the motorized vari-focal lens to dial in the perfect focus and framing. Adjust exposure, white balance, and noise reduction to optimize performance in your specific indoor lighting conditions. Test IR performance for nighttime or low-light scenarios to ensure consistent visibility.
Step 6: Secure and maintain. Apply any required security patches or firmware updates, verify tamper resistance features, and clean the lens to maintain clarity. Document the camera’s configuration for easy future adjustments or expansions in your security system.
Frequently asked questions
Q: What resolution and frame rate does the Wisenet XND-6080RV support?
A: It delivers 2MP Full HD (1080p) video. When WDR is off, it can run up to 60fps; with WDR on, it streams at 1080p with up to 30fps for better dynamic range management.
Q: Does this camera work well in low-light or indoor night conditions?
A: Yes. It features 150dB WDR to handle high-contrast scenes and network IR illumination to enhance visibility in low-light indoor environments.
Q: What compression formats are available, and how does WiseStream II help?
A: The camera supports H.265, H.264, and MJPEG. WiseStream II provides intelligent bandwidth management by dynamically switching streams to reduce bandwidth usage without compromising essential image quality.
Q: Can I install this camera easily by myself?
A: The camera includes a USB port for quick installation and firmware updates, and its compact indoor vandal dome design is straightforward to mount and configure with typical NVR or video management software.
Q: What environments is this camera best suited for?
A: It is ideal for indoor environments such as retail stores, offices, lobbies, and other shared indoor spaces where reliable 2MP imaging, wide coverage, and smart analytics are valuable.
