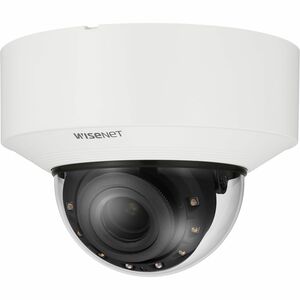

Wisenet XND-C7083RV 4 Megapixel Indoor Network Camera - Color - Dome - White

The Wisenet XND-C7083RV is a premium indoor network camera designed to deliver sharp, color-rich video and dependable performance in busy indoor environments. Whether you’re safeguarding a retail space, office lobby, or small business, this dome camera combines high-resolution imaging, flexible optics, and advanced compression to ensure you capture every important detail with clarity. With 4 megapixels of color imagery, a versatile varifocal lens, and robust on-board features, the XND-C7083RV is built to enhance security without compromising interior aesthetics.

• Exceptional image quality — Capture crisp, 2592 x 1520 resolution color video that reveals fine details, expressions, and license plate information with accuracy in well-lit and moderately challenging indoor lighting.
• Flexible 3.5x optical zoom — The camera features a 2.80 mm to 10 mm varifocal lens, delivering a wide field of view when needed and a tighter, more focused view for important zones. The 3.5x optical zoom maintains image quality while adjusting the scene to your surveillance needs.
• Efficient video compression — Supports H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG profiles, enabling efficient bandwidth usage and storage without sacrificing critical detail.
• Reliable night vision — 131.23 feet of infrared night vision ensures consistent monitoring after dark, helping to deter intruders and provide evidence in low-light conditions.
• Rugged indoor design — Discreet white dome housing suitable for interior installation, featuring IK08 impact resistance and IP52 ingress protection to withstand everyday indoor use and minor environmental factors.

Technical Details of Wisenet XND-C7083RV

• Model type: Indoor color dome camera
• Sensor: CMOS
• Resolution: 2592 x 1520 (4 MP)
• Frame rate: Up to 60 fps
• Lens: 2.80 mm to 10 mm varifocal, offering 3.5x optical zoom
• Compression formats: H.265, H.265M, H.265H, H.264, H.264M, H.264H, MJPEG
• Infrared night vision: Up to 131.23 feet (approx. 40 meters)
• Connectivity: Fast Ethernet, USB
• Ingress protection: IP52
• Vandal resistance: IK08
• Color: White
• Applications: Indoor surveillance for retail, office, and commercial spaces

How to Install Wisenet XND-C7083RV

• Choose an indoor mounting location with a clear view of the area you want to monitor, ensuring there is access to power or PoE and a stable surface for mounting.
• Mount the camera securely to a ceiling or wall using appropriate screws and anchors. Ensure the dome is properly seated and the lens can be adjusted without obstruction.
• Connect the camera to a power source or PoE switch. The Wisenet XND-C7083RV supports standard Ethernet networking for reliable data transmission and remote access.
• Power up the camera and access the device’s web interface or a compatible NVR. Follow the on-screen setup to assign a unique IP address, configure network settings, and enable video streams.
• Configure the video streams and codecs to match your bandwidth and storage requirements. Choose from H.265/H.264 profiles or MJPEG depending on your network constraints.
• Set the lens to your preferred field of view by adjusting the 2.80–10 mm varifocal lens. Use the 3.5x optical zoom to obtain a clear center of interest while keeping the scene context intact.
• Enable infrared night vision and test its performance at the distance you need, ensuring there is no glare or reflective surfaces that may degrade the image at night.
• Fine-tune additional features such as white balance, gain, exposure, and motion sensitivity if supported by your NVR or camera firmware. Save settings and verify that recordings are being stored correctly.
• Regularly review footage from different times of day to confirm continuous coverage and adjust camera positioning as your space evolves.

Frequently asked questions

• What is the resolution of the Wisenet XND-C7083RV? It delivers 4 MP color video at up to 2592 x 1520 resolution for detailed surveillance imagery.
• What lens does it use? The camera features a 2.80 mm to 10 mm varifocal lens with 3.5x optical zoom, allowing flexible focal lengths to adapt to different indoor scenes.
• Does it support infrared night vision? Yes, the XND-C7083RV provides infrared night vision up to approximately 131.23 feet, enabling monitoring in low-light or dark environments.
• What video codecs are supported? The camera supports multiple codecs, including H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG, for efficient bandwidth and storage management.
• Is the camera rugged for indoor use? Yes. It features IK08 vandal resistance and IP52 ingress protection, making it suitable for interior environments where there may be impacts or dust exposure.
• What mounting and installation considerations should I know? Since this is an indoor dome camera with a white housing, place it in a location that minimizes glare, avoids direct bright lights, and provides easy access for maintenance and cable management.
