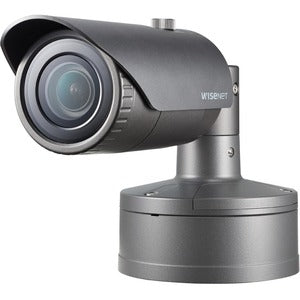

Wisenet XNO-6020R 2 Megapixel Outdoor HD Network Camera - Color, Monochrome

The Wisenet XNO-6020R is a rugged, outdoor 2MP HD network camera built for reliable surveillance in all lighting conditions. Powered by the WiseNet X platform with WiseNet 5 technology, this vandal-resistant bullet camera delivers crisp, detailed footage with flexible color and monochrome imaging. With advanced compression, wide dynamic range, and easy installation features, it’s designed to protect entrances, perimeters, and common areas without compromising bandwidth or storage. Whether you’re monitoring a doorway, parking lot, or exterior facade, the XNO-6020R provides dependable performance, clear night vision, and seamless integration with modern security systems.

• 2MP Full HD clarity with flexible frame rates: Capture 1080p video at up to 60fps when WDR is off, ensuring smooth motion in bright scenes; when WDR is on, record at 1080p at 30fps to maintain exposure control in high-contrast environments.
• WiseNet X engine powered by WiseNet 5: Benefit from improved image processing, smarter motion handling, and dependable performance in challenging outdoor conditions.
• Outdoor vandal bullet design with back box: Built to withstand harsh environments, with a back box included for secure mounting and easy access to all ports for installation and servicing.
• 4mm fixed focal lens with wide 88.6° FOV: A compact lens that covers expansive areas such as entrances and storefronts, delivering broad coverage while keeping installation simple.
• Efficient codecs and high dynamic range: Supports H.265, H.264, and MJPEG with WiseStream II, plus up to 150dB WDR for excellent performance in backlit and high-contrast scenes, reducing bandwidth and storage needs.

Technical Details of Wisenet XNO-6020R

• Resolution: 2MP (Full HD 1080p)
• Frame rate: Up to 60fps at 1080p when WDR is off; 1080p at 30fps when WDR is on
• Lens: 4mm fixed focal length; horizontal field of view approximately 88.6°
• Imaging modes: Color and Monochrome
• Night vision: Built-in infrared illumination for outdoor use
• Video codecs: H.265, H.264, MJPEG; WiseStream II compression
• Dynamic range: Up to 150dB WDR
• Ports and access: USB port; Back box included for easy access to all ports

How to install Wisenet XNO-6020R

• Plan a secure outdoor mounting location with a clear line of sight, considering glare, weather exposure, and electrical/power access.
• Mount the back box to a sturdy surface and route network and power cables to the site, ensuring proper seals for weather resistance.
• Attach the camera to the back box, connect network and power, and power up the unit to begin initial setup.
• Access the camera’s web interface using its IP address; configure color or monochrome mode, motion detection, WDR settings, and WiseStream II as needed.
• Focus and frame the scene by adjusting the 4mm lens to achieve the desired 88.6° field of view and verify coverage of critical zones.

Frequently asked questions

• Q: Is the Wisenet XNO-6020R suitable for outdoor installation? A: Yes. It is designed for outdoor use with a rugged vandal-bullet housing and includes a back box for secure mounting and port access.
• Q: What video formats does it support? A: It supports H.265, H.264, and MJPEG, with WiseStream II compression to optimize bandwidth and storage needs.
• Q: Does this camera offer color and monochrome imaging? A: Yes, the XNO-6020R can operate in color or monochrome mode depending on lighting and settings.
• Q: How good is the dynamic range? A: It delivers up to 150dB WDR, helping to balance exposure in scenes with strong backlighting or high-contrast lighting.
• Q: What lens and field of view does it have? A: It uses a 4mm fixed focal lens with approximately 88.6° horizontal field of view for broad surveillance coverage.
