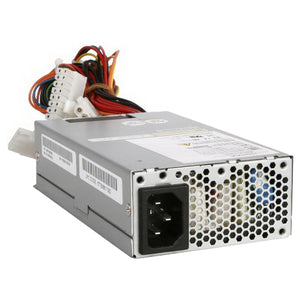

Xeal Flex TC-1U30FX8 ATX12V Power Supply

XealSKU: 2858016

Price:
Sale price$122.60

Description

Introducing the industrial-grade TC-1U30FX8 1U 150W Flex ATX power supply, engineered to fit seamlessly into compact 1U rackmount chassis while delivering reliable, consistent power for demanding environments. This compact powerhouse combines a rugged build with intelligent design features that professional installers and system integrators look for in embedded, edge, and small-form-factor servers. With a focus on durability, efficiency, and protection, the TC-1U30FX8 keeps sensitive electronics powered without sacrificing space or performance. Whether you’re powering a network appliance, a compact server, or a bare-bones workstation in a constrained rack, this 1U power supply provides clean 12V rails, robust protection, and predictable performance under load. Its Flex ATX form factor makes it a versatile choice for a variety of industrial and commercial applications, where uptime and stability are non-negotiable. Built to endure, tolerate heat, and minimize noise, the TC-1U30FX8 stands out as a dependable, space-saving solution for modern 1U deployments.

  • 1U Flex ATX form factor: A compact, rack-friendly power supply that slides neatly into 1U chassis spaces, delivering essential motherboard and peripheral power while preserving valuable rack space for other critical components.
  • Industrial-grade reliability with triple circuit protections: Over-Voltage, Over-Current, and Over-Temperature protections safeguard both the supply and connected equipment, reducing the risk of unexpected downtime and component damage in demanding environments.
  • Low-noise operation and efficient cooling: Optimized thermal design and high-quality components contribute to quieter operation in busy rack rooms, data centers, and industrial installations where ambient noise matters.
  • Active PFC for improved power quality: The built-in active Power Factor Correction helps smooth input current, reduce harmonics, and enhance overall energy efficiency—particularly important in environments with diverse loads.
  • Global input range and 150W continuous power: Designed to support wide AC input (typical 100–240V), enabling reliable performance across regions while delivering stable +12V power rails suitable for small servers and embedded systems.

Technical Details of Xeal Flex TC-1U30FX8 ATX12V Power Supply

  • Form factor: 1U Flex ATX power supply designed for 1U rackmount chassis
  • Total output: 150W continuous power with +12V rails appropriate for motherboard and peripheral loads
  • Input voltage: 100–240VAC, 50/60Hz universal input for global use
  • Protection features: Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) for system safety
  • Power quality: Active Power Factor Correction (PFC) to improve efficiency and reduce input current distortion
  • Noise and cooling: Engineered for low-noise operation with a compact cooling design suitable for 1U environments
  • Reliability: Industrial-grade components and robust thermal management designed for uptime-critical deployments
  • Mounting and compatibility: Compatible with standard 1U chassis and common 24-pin/CPU power configurations used by ATX12V systems

How to install Xeal Flex TC-1U30FX8 ATX12V Power Supply

  • Power down your system completely, unplug the power cord, and discharge any residual energy before handling the power supply or opening the chassis
  • Remove the chassis cover and identify the 1U mounting location; align the TC-1U30FX8 with the rear mounting holes and ensure there is sufficient clearance for airflow
  • Secure the power supply to the chassis using the included mounting screws, making sure it sits firmly without warping or interference with adjacent components
  • Connect the main ATX power connector (24-pin) to the motherboard and attach the appropriate CPU power connector (4-pin or 8-pin) as required by your motherboard or embedded board
  • Attach any additional peripheral or modular power cables needed for your load, distributing cables to minimize airflow obstruction and staying within the 150W total output limit
  • Double-check all connections, reassemble the chassis, and restore power; verify that rails are delivering stable voltages and that the system boots normally without errors

Frequently asked questions

  • Q: What is the power output of the Xeal TC-1U30FX8? A: It provides 150W of continuous power, with +12V rails suitable for small servers, network appliances, and embedded systems in 1U configurations.
  • Q: Is this power supply compatible with ATX12V motherboards? A: Yes, it is designed for ATX12V systems and follows standard power-rail layouts used by most ATX boards in 1U form factors.
  • Q: Does it include active PFC? A: Yes, the TC-1U30FX8 features Active Power Factor Correction to improve input efficiency and reduce harmonic distortion for better grid compliance and reliability.
  • Q: What protections does it offer? A: It includes triple protections: Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to safeguard both the supply and connected devices.
  • Q: Where can I install this power supply? A: It is designed for 1U rackmount chassis, making it ideal for compact servers, network appliances, edge devices, and other space-constrained deployments.
