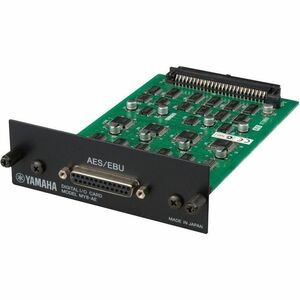

Yamaha MY8-AE Digital I/O Card

The Yamaha MY8-AE is a premium, optional digital I/O card designed for compatible Yamaha digital mixing consoles and signal processors. It expands your I/O depth with reliable, high‑fidelity AES/EBU digital audio paths, delivering eight inputs and eight outputs at 24‑bit depth and sample rates of 44.1 kHz or 48 kHz. Engineered for professional environments — from studios to live performances — this card integrates seamlessly into Yamaha systems to unlock expanded routing, precise synchronization, and robust digital connectivity. If you’re looking to maximize your digital workflow with uncompromised, uncompressed audio, the MY8-AE is engineered to meet the demanding standards of modern audio production.

• Eight inputs and eight outputs for expanded digital I/O within Yamaha digital ecosystems. The MY8-AE delivers a flexible multichannel path that lets you route eight channels of pristine 24‑bit audio at 44.1/48 kHz, enabling seamless integration of external digital sources and destinations without downsampling or loss of fidelity.
• 24-bit depth at 44.1/48 kHz with uncompressed AES/EBU compatibility. This configuration ensures high dynamic range and low noise floor, preserving the subtleties of nuanced performances and complex mixes while maintaining full compatibility with standard AES/EBU machinery and workflows.
• AES/EBU compliant digital audio path for reliable, industry-standard digital transmission. The MY8-AE supports uncompressed, professional-grade digital audio, reducing latency and preserving signal integrity across the console’s internal routing and external devices.
• 1 x D-sub 25 pin connector provides a rugged, proven interface for digital I/O. The solid D-sub 25‑pin connection is designed for dependable performance in busy studio and stage environments, ensuring solid pin‑to‑pin integrity for every channel.
• Compact, purpose-built dimensions (120 mm x 40 mm x 176 mm) fit neatly into Yamaha expansion bays. At roughly 4.7" x 1.6" x 6.9", this card adds substantial I/O capability without compromising chassis space, making it a practical upgrade for existing systems that require more digital I/O without a bulky card cage.

Technical Details of Yamaha Digital I/O Card

• Model: Yamaha MY8-AE
• Type: 8-in / 8-out digital I/O card
• Sampling rate: 44.1 kHz and 48 kHz (uncompressed)
• Resolution: 24-bit depth
• Audio format: AES/EBU compliant digital audio
• Connector: 1 x D-sub 25 pin
• Dimensions: 120 mm x 40 mm x 176 mm (approximately 4.7" x 1.6" x 6.9")
• Compatibility: For use with compatible Yamaha digital mixing consoles and signal processors

How to install Yamaha Digital I/O Card

To add the MY8-AE to your Yamaha digital system, follow these general steps designed for a straightforward upgrade while preserving existing configurations.

Step 1: Power down and disconnect the console from any power sources. Prepare a safe work area to prevent static discharge and handle the card carefully to avoid any damage to connectors.

Step 2: Remove the access panel or open the chassis area designated for expansion cards. Locate an available expansion slot that matches the card’s interface and the console’s design specifications. If your system uses a modular backplane, confirm the slot is reserved for digital I/O expansion.

Step 3: Align the MY8-AE with the slot and gently insert it, ensuring proper seating and alignment with the connector pins. Avoid forcing the card; if it doesn’t slide into place with gentle pressure, remove it and recheck alignment.

Step 4: Secure the card with the appropriate retaining screws or latching mechanism as dictated by your chassis model. Ensure the card is firmly mounted to prevent any movement during operation or transport.

Step 5: Reattach the access panel, reconnect any internal cables as required, and power up the console. Allow the unit to boot and recognize the new I/O card. Access the console’s software or hardware utility to confirm the MY8-AE appears in the I/O or expansion section.

Step 6: Configure the I/O routing. Within the console’s configuration menu, assign the eight digital input channels and eight digital output channels to your desired destinations. Set the sampling rate (44.1 kHz or 48 kHz) and ensure AES/EBU is selected for the digital path. Save the configuration and perform a quick loopback test to verify signal integrity.

Step 7: Calibrate and balance. Check channel levels, latency settings, and any clocking options to ensure synchronization with the rest of your system. If the console supports word clock or digital clocking hierarchy, align the MY8-AE to your primary clock source to maintain phase coherence across all devices.

Step 8: Validate workflow. Route your external devices through the MY8-AE, test both directions (inputs and outputs), and confirm that all eight channels operate as expected in your typical production scenario. Document any routing changes for future reference.

Frequently asked questions

Q: What is the Yamaha MY8-AE? A: It is an optional digital I/O card designed for compatible Yamaha digital mixing consoles and signal processors, expanding your AES/EBU digital audio I/O with eight inputs and eight outputs.

Q: What audio specifications does it support? A: The MY8-AE supports 24-bit audio at 44.1 kHz or 48 kHz, with uncompressed AES/EBU digital audio, ensuring high fidelity and robust digital performance.

Q: What connector type is used? A: The card uses a single 25‑pin D-sub connector for digital I/O, providing a secure and widely compatible interface.

Q: How much space does it require? A: The card measures 120 mm x 40 mm x 176 mm (approximately 4.7" x 1.6" x 6.9"), designed to fit Yamaha expansion bays without crowding the chassis.

Q: Is it compatible with all Yamaha digital consoles? A: The MY8-AE is designed for use with compatible Yamaha digital mixing consoles and signal processors that include expansion I/O capabilities; check your model’s expansion specifications to confirm compatibility.

Q: How do I configure routing after installation? A: After installation, enter the console’s I/O or routing settings, enable the MY8-AE as an active I/O device, assign each of the eight input and eight output channels to the desired paths, and synchronize to the system clock (44.1/48 kHz) to ensure consistent performance.
