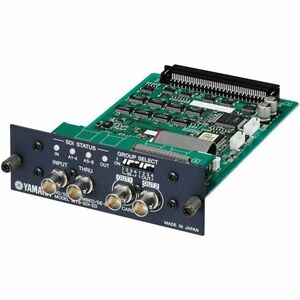

Yamaha MY8-SDI-ED: HD/SD-SDI Embed/De-embed Card

Experience unmatched flexibility in audio and video workflows with the Yamaha MY8-SDI-ED HD/SD-SDI Embed/De-embed Card. Engineered for compatibility with Yamaha digital mixing consoles and signal processors, this compact interface brings professional embed and de-embed capabilities directly to your SDI-based setups. By enabling the embedding of two audio groups into an HD-/SD-SDI output and the de-embedding of up to two of the four audio channels from an SDI feed, the MY8-SDI-ED simplifies signal routing, reduces cabling, and ensures precise synchronization between audio and video across live events, broadcast feeds, and studio environments. The LED audio status display provides real-time feedback, allowing engineers to monitor active paths at a glance and troubleshoot quickly on busy stages. Its slim footprint makes it easy to integrate into rack systems, transportable rigs, and permanent installations, delivering reliable performance without sacrificing space or workflow efficiency. Whether you are coordinating complex multi-room concerts, streaming productions, or studio productions, the MY8-SDI-ED is built to deliver clear, dependable audio alignment with your SDI video backbone.

• Embed two audio groups into an HD-/SD-SDI signal for output, enabling synchronized multi-channel audio to ride with video for seamless live sound, broadcast feeds, and multi-camera productions. This capability reduces the need for separate audio paths and enables streamlined, integrated signal routing from console to monitor, recorder, or display systems.
• De-embed up to two of the four audio channels from an HD-/SD-SDI feed, giving you flexible on-site monitoring, stage feeds, or alternative headphone and cue mixes without altering the primary video path. This is ideal for back-of-house monitoring, front-of-house cueing, or redirecting audio to supplementary recording devices.
• LED audio status display provides immediate, at-a-glance visibility of embed/de-embed activity and routing status. In fast-paced environments, this visual feedback helps technicians confirm correct channel assignments, detect active paths, and accelerate setup and troubleshooting.
• Compact, rack-friendly dimensions (120 mm x 40 mm x 176 mm) designed for discreet installation inside Yamaha consoles or compatible signal processing units. The slim profile supports clean cable management and easy integration into ready-made racks, portable rigs, or fixed installations.
• Built for compatibility with Yamaha digital mixing consoles and signal processors, offering plug-and-play integration and dependable performance. The card is designed to complement Yamaha ecosystems, delivering reliable embed/de-embed functionality with minimal setup time and robust operation in demanding live and studio environments.

Technical Details of Yamaha HD/SD-SDI Embed/De-embed Card

• Model: MY8-SDI-ED
• Type: HD-/SD-SDI Embed/De-embed Card for Yamaha digital mixing consoles and signal processors
• Dimensions: 120 mm x 40 mm x 176 mm (4.7" x 1.6" x 6.9")
• LED audio status display for real-time monitoring of embed/de-embed activity
• Embed: 2 audio groups into an HD-/SD-SDI signal for output
• De-embed: up to two of the 4 audio channels from an HD-/SD-SDI feed

How to install Yamaha HD/SD-SDI Embed/De-embed Card

• Power down and unplug your Yamaha console or signal processor before installation to prevent static discharge and ensure safe handling of internal components.
• Locate the appropriate expansion slot or card slot on the compatible Yamaha device and insert the MY8-SDI-ED firmly, making sure the connector seats securely for reliable operation.
• Connect your HD-/SD-SDI cables to the card’s SDI input and output using standard BNC connectors, verifying that video routing matches your project’s requirements and that video paths are clear.
• Power up the unit and access the console’s or processor’s signal routing or card configuration menu to enable embed/de-embed functions, then select the desired audio groups and channels for embedding or de-embedding.
• Test the setup with a known video source, monitor the LED status indicators, and verify audio levels and synchronization across the embedded and de-embedded paths. Fine-tune routing and level settings as needed for optimal performance in the venue or studio.

Frequently asked questions

• What is the MY8-SDI-ED used for? It provides HD/SD-SDI embedding and de-embedding of audio within SDI streams for compatible Yamaha consoles and processors, enabling synchronized audio with video and flexible routing in live, broadcast, and studio settings.
• How many audio groups can be embedded or de-embedded? It can embed 2 audio groups into the SDI signal and de-embed up to two of the four audio channels from the SDI feed, allowing versatile routing options without changing the video path.
• Is it compatible with all Yamaha consoles? It is designed for compatible Yamaha digital mixing consoles and signal processors that support this HD-/SD-SDI embed/de-embed interface, ensuring seamless integration within the Yamaha ecosystem.
• What are the physical dimensions and where can it fit? The card measures 120 mm x 40 mm x 176 mm, making it suitable for compact rack setups, control rooms, and portable installations where space is at a premium.
• How do I verify proper operation after installation? Use the LED audio status display for real-time status checks and perform a test with a known video source to confirm correct embedding and de-embedding, then adjust routing and levels as needed for optimal performance.
