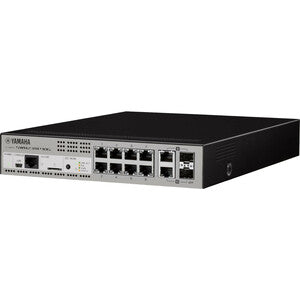

Yamaha Intelligent L2 PoE Network Switch - 10 Ports

The Yamaha Intelligent L2 Network Switch with PoE is designed to simplify network deployment while delivering robust performance for today’s connected devices. With 10 Power over Ethernet (PoE) ports, it consolidates data and power delivery into a single, compact 1U chassis, making it an ideal choice for small to mid-sized offices, retail spaces, and edge environments. This switch is engineered for efficiency and reliability, combining manageable Layer 2 switching with modular expansion potential and dual SFP uplinks to support future growth. Whether you’re powering IP cameras, VoIP phones, wireless access points, or connected sensors, this Yamaha switch provides dependable QoS, security features, and streamlined management to keep your network running smoothly.

• Ten PoE-enabled ports support streamlined device deployment without extra power adapters. Simplify installation for IP cameras, VoIP phones, and wireless access points while maintaining a clean, cable-friendly rack. The generous PoE budget helps you run multiple devices simultaneously without compromising performance.
• Manageable Layer 2 switching delivers essential network control, including VLAN segmentation, port security, and prioritized traffic. This makes it easy to isolate guest networks, protect sensitive devices, and ensure critical applications get the bandwidth they need—perfect for small offices and multi-device environments.
• Modular design with 2 SFP slots provides flexible uplink options and future-proofing. Use copper Ethernet ports for devices nearby and deploy optical fiber uplinks via SFPs to extend reach across rooms or floors while maintaining low latency and stable throughput.
• High power efficiency and PoE budget with a 280 W power consumption and up to 240 W available for PoE devices. This balance supports a range of PoE-powered equipment while helping to control energy costs in your network operations.
• Compact 1U chassis with versatile mounting supports rack-mounting, wall mounting, and ceiling mounting setups. The adaptable form factor makes it easy to install in cabinets, under desks, or in networking closets, giving you flexible deployment options.

Technical Details of Yamaha Intelligent L2 Network Switch with PoE

• Model/Type: Yamaha Intelligent L2 Network Switch with PoE
• Ports: 10 PoE-enabled ports
• PoE Budget: 240 W
• Power Consumption: 280 W
• U Height: 1U
• Uplink Interfaces: 2 SFP slots for optical fiber uplinks
• Switching: Manageable Layer 2 with essential traffic management
• Cabling: Optical Fiber and Twisted Pair support
• PoE Ports: All 10 ports capable of delivering PoE to connected devices
• Mounting: Rack-mountable, Wall Mountable, Ceiling Mount Recommended for stable operation
• Form Factor: 1U rack-mountable chassis with flexible mounting options

how to install Yamaha Intelligent L2 Network Switch with PoE

• Plan your network layout, identifying which devices will be powered via PoE and which will connect via uplinks. This helps you allocate PoE budget and schedule maintenance with minimal downtime.
• Mount the switch in a suitable location—rack, wall, or ceiling—using the included mounting hardware or hardware compatible with your enclosure. Ensure adequate ventilation to maintain performance and longevity.
• Connect the power supply and verify the unit powers on without any fault indicators. If a redundant power option is available, configure it according to your facility’s reliability requirements.
• Connect PoE endpoints to the 10 PoE ports. For uplinks, insert fiber cables into the 2 SFP slots and connect the other ends to your distribution switch, router, or core network device.
• Configure management settings via the console or web interface (as applicable). Set up VLANs, QoS policies, and security features to fit your network design. Ensure firmware is up to date to benefit from the latest enhancements and protections.
• Test connectivity by verifying device power delivery, link status, and data throughput. Monitor PoE usage and adjust allocations if needed to maintain performance for all connected devices.

Frequently asked questions

• What devices can I power with the PoE ports? The 10 PoE ports are designed to power PoE-enabled devices such as IP cameras, VoIP phones, wireless access points, and other PoE-capable equipment within the 240 W PoE budget.
• Can I use the SFP slots for fiber uplinks? Yes. The switch includes 2 SFP slots intended for optical fiber uplinks, enabling high-speed connections to your core network or other distribution switches.
• Is this switch suitable for small offices? Absolutely. Its compact 1U form factor, manageable Layer 2 features, and PoE capabilities make it an ideal fit for small offices, retail spaces, and edge deployments needing centralized power and data delivery.
• Does it support VLANs and QoS? Yes. As a manageable Layer 2 switch, it provides essential VLAN segmentation, traffic prioritization, and security features to help optimize performance and security across your network.
