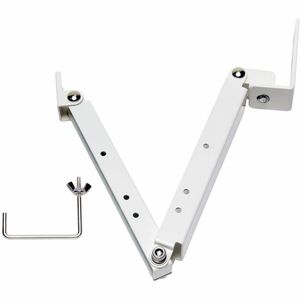

Yamaha Vertical Mounting Bracket for VXL Line Array Speakers

Elevate your sound installation with the Yamaha Vertical Mounting Bracket, a purpose-built support accessory designed for the VXL line array family. Finished in clean white, this vertical coupling bracket integrates seamlessly into venues, stages, and installations while delivering precise control over speaker orientation. Built for reliable performance, it helps ensure your VXL1-24/16 and related VXL series speakers project audio with optimal clarity and coverage, whether you’re setting up for a touring show, a corporate event, or a local venue gig.

• Compatibility and fit — Specifically designed for VXL1-24/16 and other members of the VXL series, this mounting bracket provides a secure, snug connection that respects the geometry of your line array system. Its tailored design reduces fitment guesswork and helps you achieve a consistent setup across different rigs.
• Vertical coupling with downward angle adjustment — The bracket enables vertical coupling between speakers in a line array while offering downward angle adjustment. This feature gives you precise control over the vertical dispersion, ensuring your audience at the front row and the back row receive balanced, intelligible sound with minimized lobing or excessive room reflections.
• Secure, quick adjustment — A key benefit is the ability to adjust and reposition connectors within a secure mounting system quickly and confidently. The bracket is engineered to hold its position once tightened, reducing drift during transport and performance while making on-site tweaks straightforward for technicians.
• Professional white finish — The white finish not only looks professional on stage but also blends with many speaker colors and rigging configurations, helping the installation look clean and intentional. The aesthetic aligns with professional venues that demand a polished rigging appearance.
• Efficient installation process — Designed to simplify the setup workflow, this bracket minimizes the time needed to assemble and align VXL speakers. Its straightforward mounting geometry supports faster rehearsals and quicker load-in, enabling crews to focus on performance rather than hardware fiddling.

Techncial Details of Yamaha Vertical Mounting Bracket for VXL Line Array Speakers

• Product type — Yamaha Vertical Mounting Bracket for Line Array Speakers (Vertical orientation)
• Finish — White
• Compatibility — VXL series, with specific reference to VXL1-24/16
• Angle adjustment — Downward angle adjustability for precise vertical dispersion control
• Mounting system — Vertical coupling bracket designed to support secure connections and easy repositioning
• Key benefits — Quick installation, secure hold, and consistent, targeted coverage for line array setups

How to install Yamaha Mounting Bracket for Line Array Speaker

To achieve the best performance and a safe rig, follow these general steps when installing the Yamaha Vertical Mounting Bracket on VXL line array speakers. Always refer to venue-specific safety protocols and use appropriate hardware rated for the load and rigging environment.

• Prepare the setup — Inspect all components of the VXL speaker stack and mounting hardware. Verify that the bracket, mounting bolts, and connectors are clean, undamaged, and compatible with your particular VXL model (e.g., VXL1-24/16).
• Attach the bracket to the speaker — Secure the vertical mounting bracket to the designated mounting points on the VXL speaker per the manufacturer’s guidance. Ensure bolts or fasteners are tightened to the recommended torque to prevent slippage during operation.
• Position for the venue — With assistance if needed, lift and position the speaker stack so that the bracket aligns with the rigging point or stand interface. Align the vertical array to the desired orientation, taking into account room acoustics, audience layout, and stage sightlines.
• Adjust the downward angle — Use the bracket’s adjustment mechanism to set the downward angle. Small incremental adjustments allow you to target the seating area precisely, reducing blind spots while avoiding excessive tilting that could impact the rig’s center of gravity.
• Finalize and test — Tighten all fasteners securely, then perform a low- and high-volume test. Check that the bracket remains stable under simulated movement and that the sound coverage matches the intended dispersion pattern. Make any fine-tuning adjustments as needed before the event begins.

Frequently asked questions

• What models is this bracket compatible with? It is designed for the VXL series, with specific compatibility for VXL1-24/16. If you operate other VXL configurations, verify compatibility with Yamaha’s technical resources or your vendor before mounting.
• Does the bracket include mounting hardware? The provided details emphasize the bracket itself and its mounting function. For hardware specifics, check with your supplier or Yamaha’s product documentation to confirm whether bolts or additional adapters are included.
• Can I adjust the angle after installation? Yes, the bracket supports downward angle adjustment, allowing you to fine-tune vertical dispersion even after initial installation. Always re-tighten fasteners after making angle changes to maintain stability.
• Is this bracket suitable for outdoor use? The product description highlights a white finish and mounting capability but does not specify weather resistance. If you plan outdoor use, ensure all components are rated for outdoor environments and follow proper protective measures for weather exposure.
• What are the safety considerations? Like all rigging hardware, ensure the system is installed by trained personnel, use high-quality mounting hardware, and perform load and safety checks according to local codes and venue requirements. Regular inspection of the bracket and connectors is recommended to preserve performance and safety over time.
