Yamaha MY8-ADDA96 Analog-to-digital Input / Digital-to-Analog Output Card

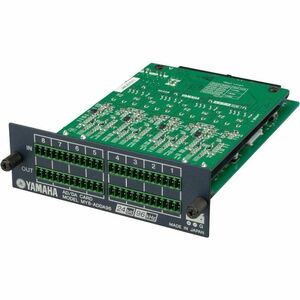

Enhance your Yamaha digital ecosystem with the MY8-ADDA96, a versatile optional analog-to-digital input and digital-to-analog output card engineered for compatible Yamaha digital mixing consoles and signal processors. This expansion card delivers eight analog inputs and eight analog outputs through eight Euroblock connectors, enabling you to connect external analog gear—such as outboard preamps, effects processors, and stage inputs—directly to your console’s signal path. Designed for reliability in demanding live environments and precise studio work, the MY8-ADDA96 helps you expand your I/O capabilities without sacrificing fidelity or workflow efficiency. Its compact dimensions (120mm x 40mm x 176mm) keep installation tidy in crowded rack spaces, while the Euroblock termination delivers secure, tool-free connections that stand up to regular setup and teardown. Whether you’re tuning a live rig or shaping a nuanced studio mix, this card provides a stable bridge between analog world and digital control, delivering seamless integration within the Yamaha ecosystem.

With eight channels of input and eight channels of output, the MY8-ADDA96 gives you robust routing flexibility across your console’s software environment. Users can bring in external microphone or instrument feeds through reliable analog paths, route them through digital processing, and send results back out to monitors, effects units, orAO/DA stages with minimal latency. This capability is particularly valuable when you need to preserve dynamic range and transient detail across a complex mix, or when you want to integrate analog gear that imparts a distinct warmth or character to your sound. The card’s design emphasizes clean conversion and consistent performance, so whether you’re in a high-energy live venue, a broadcast studio, or a music production room, you can count on predictable I/O behavior from session to session.

• Seamless I/O expansion for compatible Yamaha systems, adding eight analog inputs and eight analog outputs to your console workflow.
• High-quality analog-to-digital and digital-to-analog conversion to preserve signal integrity across the conversion process.
• Eight secure Euroblock connectors for reliable, tool-free analog wiring.
• Compact, rack-friendly dimensions (120mm x 40mm x 176mm) that fit neatly in supported Yamaha setups.
• Designed for reliability with Yamaha digital mixing consoles and signal processors, ensuring stable operation in both live and studio environments.

Technical Details of Yamaha MY8-ADDA96

• Analog inputs: 8
• Analog outputs: 8
• Connector type: Euroblock (8 channels)
• Form factor: Expansion card for Yamaha digital consoles and processors
• Dimensions: 120mm x 40mm x 176mm
• Compatibility: Yamaha digital mixing consoles and signal processors

How to install Yamaha MY8-ADDA96

• Power down your Yamaha console and any connected equipment before starting the installation.
• Refer to your console’s manual to locate the appropriate expansion slot or connector for the MY8-ADDA96 and prepare the chassis for card insertion.
• Insert the MY8-ADDA96 into the expansion slot or connector as specified by Yamaha, ensuring the card seats firmly and is secured according to the manufacturer’s guidelines.
• Route external analog sources to the eight Euroblock inputs on the card, and connect the eight analog outputs to your monitors, processors, or other analog destinations using the corresponding Euroblock connectors.
• Power on the console and access the I/O or card management section of the user interface to enable and configure the MY8-ADDA96 channels.
• Assign each analog input to the desired digital path and routing within your mixer’s channel strips or bus structure. Do the same for the outputs to ensure the correct destinations are selected for monitoring or processing.
• Test each channel pair to verify proper USB/PCIe-like communication with your console, check for latency, and confirm signal integrity across both input and output paths.
• Label channels and confirm ground connections to prevent hum or noise. Save the configuration to ensure settings persist across power cycles.

Frequently asked questions

• What is the Yamaha MY8-ADDA96? It is an optional analog-to-digital input and digital-to-analog output expansion card for compatible Yamaha digital mixing consoles and signal processors, providing eight analog inputs and eight analog outputs via Euroblock connectors.
• How many channels does it support? The card provides eight analog inputs and eight analog outputs, allowing broad analog interfacing alongside your digital workflow.
• What connectors are used? Eight Euroblock connectors are used for analog input and output connections, delivering secure and reliable wiring.
• Is the MY8-ADDA96 compatible with all Yamaha consoles? It is designed for compatible Yamaha digital mixing consoles and signal processors. Specific compatibility should be verified with your console’s documentation or Yamaha support to confirm model-by-model support.
• How do I install this card? Installers should power down the system, insert the card into the approved expansion slot, connect analog sources and destinations via the Euroblock connectors, enable the card in the console’s I/O settings, and test all channels before use.
• What are the benefits of using this card? It expands I/O flexibility, enabling direct integration of external analog gear with your digital console, preserving signal integrity, reducing routing complexity, and facilitating expansive live or studio setups.
