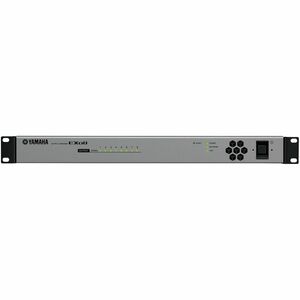

Yamaha Output Expander EXo8

The Yamaha Output Expander EXo8 is a dedicated eight-channel DAC expansion designed to enhance MTX/MRX processing chains by turning digital outputs into pristine, high-quality analog audio. Built to integrate seamlessly with YDIF-equipped Yamaha processors, EXo8 adds valuable headroom and flexibility for demanding installations, touring rigs, and multi-zone venues. It delivers consistent, musical analog signals across multiple outputs, enabling precise loudspeaker control, sophisticated monitoring, and expanded routing without complicating your core signal path. With straightforward setup, MTX Editor compatibility, and a rugged, rack-ready form factor, EXo8 is your reliable pathway to scalable, professional-grade audio expansion.

• Expand your channel count without compromising signal quality. The EXo8 adds eight independent DAC channels to your MTX/MRX system, enabling you to drive additional analog outputs such as extra loudspeakers, stage monitors, or zone-based audio feeds. Its design ensures channel-to-channel tonal balance remains tight and predictable, so you can scale your system for larger venues or more complex installations while preserving the integrity of the original mix.
• Premium YDIF-driven digital-to-analog conversion. By decoding the MTX/MRX processor’s YDIF digital feeds, EXo8 preserves dynamic range, detail, and fidelity from the source. The conversion path is engineered to minimize jitter and noise, delivering clean, natural sound with accurate transients and stable imaging—ideal for critical listening environments and high-stakes performances where every nuance matters.
• Intuitive control through MTX Editor integration. The EXo8 is designed to work in harmony with Yamaha MTX Editor, allowing technicians to configure channel mappings, set output levels, and apply per-channel processing directly from the familiar software environment. Save multiple scenes, recall presets for different events, and fine-tune routing with ease—reducing on-site setup time and ensuring consistency across deployments.
• Professional-grade build for demanding environments. Engineered for reliability in touring, installation, and worship environments, EXo8 features a compact, rack-mountable chassis with robust connectors and durable construction. Its form factor fits neatly into standard 19" racks and remains dependable under the rigors of frequent use, making it a trusted component for permanent installations or portable sound systems.
• Future-ready integration and scalable design. As part of Yamaha’s MTX/MRX ecosystem, EXo8 complements existing processors and supports scalable expansion as your system grows. Its seamless integration with MTX Editor, consistent performance, and flexible eight-channel output expansion provide a solid foundation for evolving installations, whether you’re upgrading a single venue or outfitting a network of locations.

Technical Details of Yamaha Output Expander

• Channel configuration: 8-channel digital-to-analog converters with eight independent analog outputs
• Interface: YDIF digital input from MTX/MRX processors
• Compatibility: Designed to expand YDIF-equipped MTX/MRX systems and integrate with MTX Editor
• Form factor: Compact, rack-mountable chassis for professional installations
• Build quality: Durable hardware designed for reliability in live and installed environments

How to install Yamaha Output Expander

• Power down all compatible equipment before making connections to ensure safe installation and prevent signal glitches.
• Connect the EXo8 to your MTX/MRX processor using the YDIF interface, ensuring the cable is firmly seated at both ends for a solid digital link.
• Power on the MTX/MRX processor first, then turn on the EXo8 and wait for the system to initialize. Confirm MTX Editor recognizes the new device and displays its eight channels.
• Open MTX Editor and configure the EXo8 as an eight-channel output expander. Assign each analog output to the desired zone or speaker array, and establish initial level settings to avoid peaks on startup.
• Fine-tune the routing, per-channel EQ, limiters, and any required protection processing. Save the configuration as a reusable scene or preset, and perform a thorough on-site test with reference content across all outputs to verify balance and headroom.

Frequently asked questions

• What is the Yamaha Output Expander EXo8? A dedicated eight-channel DAC expansion designed to add high-quality analog outputs to MTX/MRX processors via the YDIF interface, expanding routing flexibility without altering the core digital processing chain.
• How many channels does EXo8 provide? Eight independent analog output channels, ideal for multi-zone installations, additional monitors, or larger speaker arrays.
• What software is used to configure EXo8? Configuration and control are performed through Yamaha MTX Editor, enabling per-channel routing, level adjustments, and processing settings that stay synchronized with your MTX/MRX system.
• Is EXo8 compatible with all MTX/MRX models? EXo8 is designed to work with MTX/MRX processors that support YDIF and are listed as compatible with the Exo8 expansion. Always verify compatibility with your specific processor model in Yamaha’s documentation or support resources.
• Where should EXo8 be installed? The unit is designed for professional installations and touring rigs, fitting easily into standard 19" racks. Mounting hardware and ventilation considerations should follow typical installation practices to maintain optimal performance.
