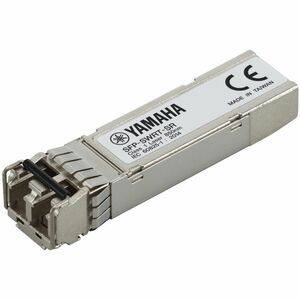

Yamaha SFP+ Module — 10GBase-SR for Data Networking

Discover cutting-edge connectivity with the Yamaha SFP+ Module, a purpose-built transceiver engineered for data networking and optical networks. This high-performance SFP+ module is designed to deliver dependable 10 Gigabit Ethernet over multi-mode fiber, making it an ideal choice for data centers, enterprise networks, and edge deployments where speed and reliability matter. With a compact form factor, robust build quality, and seamless integration into standard SFP+ slots, the Yamaha SFP+ Module offers unmatched efficiency, plug-and-play practicality, and scalable network growth for today’s demanding workloads.

• 10GBase-SR over Multi-Mode Fiber: Supports high-speed 10 Gigabit Ethernet transmissions over MMF, enabling fast uplinks, server-to-storage connectivity, and backbone links while keeping latency low and throughput high.
• 2 x LC Duplex Connectors: Flexible fiber termination with dual LC interfaces, simplifying cable management and enabling straightforward fiber routing in dense data-center racks.
• Compact, Hot-Swappable Form Factor: Designed to slip into standard SFP+ ports on switches and routers without power cycling, minimizing disruption during maintenance or expansion projects.
• Long-Lasting Reliability for Optical Networks: Built to withstand data-center conditions with stable performance, reduced bit-error rates, and dependable operation under heavy traffic loads.
• Clear Compatibility with Yamaha Networking Ecosystems: Engineered to integrate seamlessly with Yamaha’s data networking hardware and optical-network deployments, delivering consistent performance across campus, data-center, and enterprise environments.

Technical Details of Yamaha SFP+ Module

• Form Factor: SFP+
• Data Rate: 10 Gbps (10GBase-SR)
• Optical Type: Multi-Mode Fiber (MMF)
• Distance: Up to 0.30 km
• Connectors: 2 x LC
• Application: Data Networking, Optical Network
• Interface Standard: 10 Gigabit Ethernet

how to install Yamaha SFP+ Module

Installing the Yamaha SFP+ Module is straightforward and designed to minimize downtime. Start by identifying a vacant SFP+ slot in your switch or router. If a protective dust cap is present, remove it to expose the LC fiber receptacles. Ensure you are handling the module with proper electrostatic precautions to protect sensitive electronics. With the module oriented correctly, slide it into the SFP+ slot until it seats firmly with a click, indicating a secure connection. Prepare your multimode fiber by inspecting and cleaning the LC connectors and ensuring the fiber length matches your deployment needs without excessive bend radius. Connect the two LC duplex fiber cables to the corresponding ports on the module, matching transmit and receive pairs as required by your network topology. Finally, verify link status using the device’s LED indicators or your network-management system, and run a quick connectivity test to confirm the 10GBase-SR link is established. If you encounter any issues, re-seat the module and fiber connections to ensure proper contact and alignment. The Yamaha SFP+ Module is designed for easy hot-swapping, enabling service windows that minimize network disruption during maintenance or upgrades.

Frequently asked questions

• What is a Yamaha SFP+ Module? It is a compact transceiver designed for 10GBase-SR connections over multi-mode fiber, enabling high-bandwidth, low-latency links within data centers and enterprise networks. It plugs into standard SFP+ ports and supports hot-swapping for minimal downtime.
• What networks is this module suitable for? This SFP+ module is ideal for data networking and optical network applications requiring 10 Gigabit Ethernet. It works with multi-mode fiber and is suitable for short-reach links typical of data centers, campus networks, and server-to-network connectivity.
• Is the module hot-swappable? Yes. SFP+ modules are designed to be hot-swappable in most network devices, allowing you to insert or remove the module without powering down the equipment, subject to the device’s maintenance guidelines.
• What type of fiber does it use? Multi-Mode Fiber (MMF) compatible with 10GBase-SR wavelengths, providing efficient, cost-effective short-reach connections in data centers and similar deployments.
• What is the maximum distance supported? The module supports links up to 0.30 km (300 meters) on appropriate multi-mode fiber, making it ideal for intra-building and data-center uplinks where distance is limited but speed is essential.
