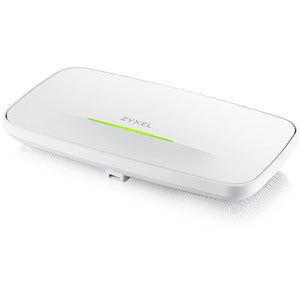

ZYXEL WAX640S-6E Tri-Band WiFi 6E Indoor Access Point

The ZYXEL WAX640S-6E is a high-performance indoor access point designed for demanding environments where reliable, ultra-fast wireless connectivity is non-negotiable. With tri-band support across 6 GHz, 5 GHz, and 2.4 GHz, it delivers a combined data rate of up to 7.8 Gbps, making it ideal for dense deployments such as enterprise campuses, educational facilities, hospitality venues, and large office spaces. Featuring 8 spatial streams (4x4 on 6 GHz, 2x2 on 5 GHz, 2x2 on 2.4 GHz) and the latest WiFi 6E technologies like OFDMA, MU-MIMO, and BSS Coloring, this access point optimizes network efficiency, capacity, and user experience even when dozens or hundreds of devices are online simultaneously. Built for indoor environments, the WAX640S-6E blends powerful performance with simple management, scalable security, and flexible deployment options that meet today’s and tomorrow’s networking needs.

• Unmatched tri-band performance for dense environments — With 6 GHz, 5 GHz, and 2.4 GHz bands, the WAX640S-6E spreads high-capacity traffic across multiple channels. The 6 GHz band provides a less congested spectrum for low-latency, high-throughput applications, while 5 GHz and 2.4 GHz ensure broad compatibility and robust coverage throughout your facility. The 8 spatial streams (4x4 on 6 GHz, 2x2 on 5 GHz and 2.4 GHz) work in concert to deliver seamless, high-speed connections to a multitude of devices without slowdowns.
• WiFi 6E technologies that boost efficiency and capacity — OFDMA partitions channels to serve many devices simultaneously, MU-MIMO accelerates multi-user traffic, and BSS Coloring reduces co-channel interference. Together, these features increase network capacity, reduce latency, and provide a smoother experience for bandwidth-intensive tasks like video conferencing, AR/VR applications, and large file transfers—especially in classrooms, offices, and hospitality venues where device density is high.
• Enterprise-grade management with cloud-enabled simplicity — The WAX640S-6E is designed for scalable administration through Zyxel Nebula Control Center, enabling centralized policy enforcement, firmware updates, and seamless monitoring across all APs in your network. NebulaFlex compatibility ensures you can switch between cloud-managed and local management modes as your deployment evolves, giving you flexible control without sacrificing security or reliability.
• Robust security and flexible networking options — Built with modern enterprise security in mind, the WAX640S-6E supports secure authentication and encryption with WPA3 and other industry-standard protections. It also supports guest networks, VLANs, and segmented access to protect sensitive resources while delivering convenient, guest-friendly access for visitors and contractors. Centralized management makes applying security updates and policy changes fast and consistent across your infrastructure.
• Smart, scalable deployment for indoor spaces — Designed for ceilings, walls, and versatile indoor environments, the WAX640S-6E offers flexible mounting options and reliable performance in offices, schools, hotels, retail spaces, and healthcare facilities. PoE power simplifies deployment by reducing cabling, while the device’s physical design emphasizes durability and discreet integration into modern interiors. As your network grows, you can expand capacity by adding more WAX640S-6Es and managing them from a single cloud-based interface.

Technical Details of ZYXEL WAX640S-6E

• Model: WAX640S-6E
• Type: Indoor Tri-Band Wireless Access Point
• Wireless Standard: IEEE 802.11ax (WiFi 6E)
• Frequency Bands: 6 GHz, 5 GHz, 2.4 GHz
• Maximum Data Rate: Up to 7.8 Gbps aggregate
• Antenna/Spatial Streams: 8 spatial streams (4x4 on 6 GHz, 2x2 on 5 GHz, 2x2 on 2.4 GHz)
• Management: Cloud-managed via Zyxel Nebula Control Center; NebulaFlex compatibility for flexible deployment
• Security: WPA3 and enterprise-grade security features; supports guest networks and VLAN segmentation
• Power: Power over Ethernet (PoE) capable for simplified installation
• Mounting: Ceiling or wall-mountable for flexible indoor placement

How to install ZYXEL WAX640S-6E

Installing the WAX640S-6E is designed to be straightforward, delivering strong performance with minimal disruption to your existing network. Follow these steps to deploy quickly and securely:

• Plan your placement — Position the AP centrally in the coverage area to maximize signal distribution while avoiding physical obstructions. For best 6 GHz performance, place closer to client clusters that will use 6 GHz bands while ensuring a clean path from the PoE switch.
• Provide power and connectivity — Connect the AP to a PoE-enabled switch or PoE injector. Ensure the Ethernet cable runs are clean and protected, and verify that the switch port supports the needed PoE standard to power the device without a separate adapter.
• Adopt and configure through Nebula — Log in to Zyxel Nebula Control Center or use NebulaFlex to adopt the WAX640S-6E. Follow the on-screen prompts to add the AP to your network, assign it to a site, and apply baseline configurations for SSIDs, security, and VLANs.
• Set up SSIDs and security — Create one or more SSIDs tailored to your environment (corporate, guest, IoT). Enable WPA3 where available, configure firewall rules, and apply appropriate VLAN tagging to segment traffic and protect sensitive resources.
• Tune performance and monitor — Enable band steering and 6 GHz optimization where supported to encourage capable devices to connect to the most appropriate band. Use Nebula’s analytics dashboards to monitor client distribution, throughput, and coverage, then adjust transmit power and channel settings as needed to reduce interference and optimize user experience.

Frequently asked questions

• What bands does the WAX640S-6E support? It supports tri-band operation across 6 GHz, 5 GHz, and 2.4 GHz, delivering higher capacity and more efficient wireless access for dense environments.
• What is the maximum throughput? The access point provides up to 7.8 Gbps of combined data rate, enabling fast, reliable connections for multiple devices and bandwidth-heavy applications.
• Can I manage the WAX640S-6E via cloud? Yes. It is designed for cloud-based management through Zyxel Nebula Control Center, with NebulaFlex options for flexible deployment.
• Is PoE supported? Yes. The WAX640S-6E supports Power over Ethernet, simplifying installation by delivering both data and power over a single cable.
• Is this a good choice for indoor spaces? Absolutely. Its indoor design, scalable management, and powerful WiFi 6E capabilities make it suitable for offices, schools, hospitality venues, and other indoor environments with high device density and demanding network requirements.
