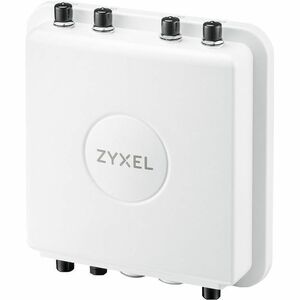

ZYXEL WAX655E Outdoor Dual-Band WiFi 6 Access Point – 5.27 Gbps, Weatherproof

When outdoor WiFi fails, so does the experience. The ZYXEL WAX655E is engineered to turn crowded outdoor spaces into reliable, high-performance wireless environments. Whether you’re deploying for festivals, stadiums, campuses, hotels, or outdoor venues, this WiFi 6 (IEEE 802.11ax) access point is built to handle bursts of simultaneous connections, demanding video streams, and fast data transfers without breaking a sweat. From the first connection to the last device, users deserve fast, stable, and secure wireless access—and the WAX655E is designed to deliver just that, even under challenging weather and high user density.

• WiFi 6 performance in every outdoor environment: Dual-band support with 802.11ax (WiFi 6) features like OFDMA and MU-MIMO to efficiently serve many devices at once, reducing latency and improving average speeds for all users in crowded outdoor spaces.
• Rugged outdoor design that stands up to the elements: Built for harsh outdoor conditions with weatherproof housing and robust protection to maintain reliable network service rain or shine, day after day, festival after festival.
• Massive throughput for real-world use: The WAX655E is engineered to deliver high aggregate speeds up to 5.27 Gbps, enabling smooth 4K streaming, esports gameplay, large file transfers, and quick cloud access for dozens or hundreds of devices simultaneously.
• Flexible deployment and intelligent connectivity: Includes a wired uplink option with high-speed Ethernet and PoE support, enabling simple mounting on street furniture, walls, poles, or rooftops while minimizing cable clutter.
• Centralized management and security: Seamless compatibility with Zyxel Nebula for cloud management, policy-based access, guest networks, and strong security features like WPA3 to protect users and improve operational control.

Technical Details of ZYXEL WAX655E

• Standards: IEEE 802.11a/b/g/n/ac/ax (WiFi 6), dual-band operation (2.4 GHz and 5 GHz)
• Maximum theoretical throughput: Up to 5.27 Gbps total bandwidth, supporting high-density client environments
• Outdoor enclosure: Weatherproof, rugged hardware designed for outdoor installations and harsh environments
• Ethernet and power: PoE+ capable ports to simplify deployment with compatible switches and network infrastructure
• Security and management: Support for WPA3, guest access with isolation options, and centralized cloud management via Zyxel Nebula Control Center

How to install ZYXEL WAX655E

• Plan the installation: Choose a high, unobstructed mounting location with clear line-of-sight for the outdoor area you want to cover. Consider weather exposure, sun glare, and potential physical access when selecting height and orientation.
• Mount and secure: Attach the WAX655E to a pole, wall, or mast using the included mounting kit. Ensure the device is firmly secured to withstand wind, rain, and other weather conditions common in outdoor environments.
• Connect to the network: Run an Ethernet cable from your PoE+ switch or injector to the AP’s Ethernet port. If supported, enable the 2.5G Ethernet uplink for higher backhaul capacity and future-proofing.
• Power up and align: Power on the device and align the antennaed coverage pattern to optimize the outdoor footprint. Use any available indicator LEDs as a quick status check during initial boot.
• Configure and test: Access the WAX655E management interface or Nebula Control Center to configure SSIDs, security settings, guest networks, VLANs, and roaming policies. Run coverage tests and adjust placement or channel selections to maximize performance and minimize interference.

Frequently asked questions

• Q: Is the ZYXEL WAX655E designed for outdoor use? A: Yes. The WAX655E features a rugged, weatherproof exterior intended for outdoor deployments, ensuring reliable performance in various climates and environments.
• Q: What wireless standards does it support? A: It supports IEEE 802.11a/b/g/n/ac/ax, i.e., WiFi 6 dual-band operation to maximize efficiency in high-density settings.
• Q: What about management and security? A: The device supports advanced security features like WPA3 and can be managed centrally through Zyxel Nebula Control Center or compatible cloud-based management solutions for streamlined policy enforcement and guest access control.
• Q: How fast is the connection? A: The ZYXEL WAX655E delivers up to 5.27 Gbps of theoretical throughput, making it suitable for simultaneous 4K video streams, online gaming, and large file transfers across outdoor spaces.
• Q: How is power supplied? A: The router is designed for PoE-powered deployments, typically via PoE+ (IEEE 802.3at) or compatible PoE switches, reducing the need for extra power infrastructure on poles or walls.
